Description
Belden 1511C B591000 Audio Snake Cable, 6 Pr #24 Str TC, Indiv. Shielded and Jacketed, O/A Foil, Flexible PVC Jkt, CM
Audio Snake Cable, 6 Pair 24 AWG (7 x 32) Tinned Copper, Polypropylene insulation, Individually Foil Shielded and Jacketed, Overall Beldfoil® Shield, Flexible PVC Jacket, CM
Ordering Details
- Manufacturer Part Number: 1511C B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825116806
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

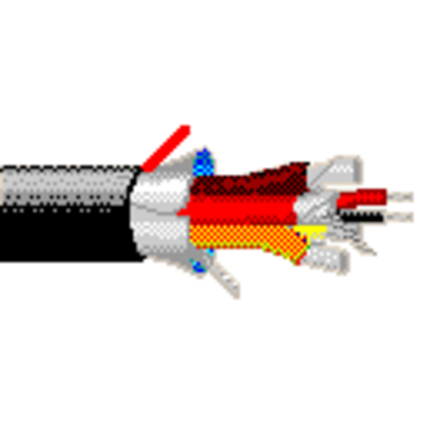

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; analog audio
Construction Details
- Size: 24; Stranding: 7x32; Material: TC - Tinned Copper; No. of Pairs: 6
- Material: PP - Polypropylene; Nom. Insulation Diameter: 0.04 in (1.0 mm); Color Code: Brown, Red, Orange, Yellow, Green, Blue
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.113 in (2.87 mm)
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.418 in; Ripcord: Yes
Electrical Characteristics
- Nom. Characteristic Impedance: 50 Ohm
- Nom. Velocity of Prop.: 66%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -35°C To +75°C
- Max. Pull Tension: 122 lbs (55.3 kg)
- Bulk Cable Weight: 94 lbs/1000ft (140 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.435 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
