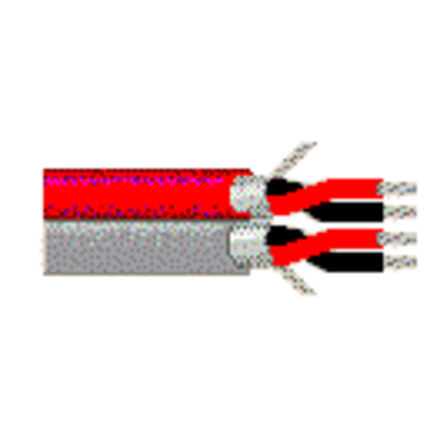

Belden 1504A 0532000 Audio Cable, #22-2pr, TC, O/A Foil, CM - Red and Gray Pair, 2,000 ft Reel

$2,053.99
SKU:
1504A 0532000
Shipping:
Calculated at Checkout
Color:
Red and Gray Pair
Length:
2,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1504A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1504A 0532000 Audio Cable, #22-2pr, TC, O/A Foil, CM

Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper pairs with PVC insulation, Beldfoil® shield, drain, PVC jacket, parallel construction

Ordering Details

  • Manufacturer Part Number: 1504A 0532000
  • Color: Red and Gray Pair
  • Length: 2,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825116196
  • Manufacturer Footnote: C

Supplied as one 2,000 ft Reel.

Product Overview

  • Suitable Applications: for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); stereo audio; computer communication; panel wiring

Construction Details

  • Size: 22; Stranding: 19x34; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.286 in

Electrical Characteristics

  • Nom. Conductor DCR: 13.7 Ohm/1000ft (44.9 Ohm/km); Nom. Capacitance Cond-to-Cond: 57 pF/ft (190 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 100 pF/ft (330 pF/m); Nom. Characteristic Impedence: 45 Ohm; Nom. Delay: 1.5 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 2.9 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 18 Ohm/1000ft (59 Ohm/km)
  • UL Voltage Rating: 150 V RMS

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -30°C To +60°C
  • Max. Pull Tension: 25 lbs (11 kg)
  • Bulk Cable Weight: 30 lbs/1000ft (45 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Overall Nominal Diameter: 0.143 x 0.286 in. The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.

History

  • Update and Revision: Revision Number: 0.439 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
