Belden 1503A 003U1000 Line Level Audio Cable, 1 Pr #22 Str TC, O/A Foil, PVC Jkt, CMR - Orange, 1,000 ft UnReel

$502.99
SKU:
1503A 003U1000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
1,000 ft
Put-Up:
UnReel
Manufacturer Status:
Active
Product Family:
1503A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1503A 003U1000 Line Level Audio Cable, 1 Pr #22 Str TC, O/A Foil, PVC Jkt, CMR

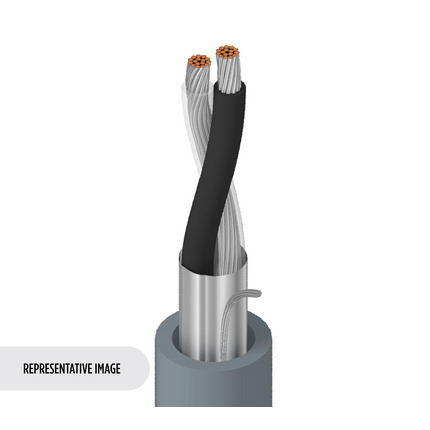

Line Level Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, PVC Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR

Ordering Details

  • Manufacturer Part Number: 1503A 003U1000
  • Color: Orange
  • Length: 1,000 ft
  • Put-Up: UnReel
  • UPC/EAN: 612825116066

Supplied as one 1,000 ft UnReel.

Product Overview

  • Suitable Applications: Line level audio; Low voltage analog signals and control

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.020 in (0.51 mm); Nom. Diameter: 0.142 in (3.61 mm)
  • Overall Cable Diameter (Nominal): 0.142 in (3.61 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 53 pF/ft (170 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 97 pF/ft (320 pF/m); Nom. Characteristic Impedence: 38 Ohm; Nom. Delay: 1.5 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 6 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 19.44 Ohm/1000ft (63.78 Ohm/km)
  • UL Voltage Rating: 300 V (CMR)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -30°C to +90°C
  • Stationary Min.: 1.4 in (36 mm); Installation Min.: 1.4 in (36 mm)
  • Max. Pull Tension: 23.7 lbs (10.8 kg)
  • Bulk Cable Weight: 14 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.420 Revision Date: 02-20-2026

Resources

Belden 1503A Product Information
