Description

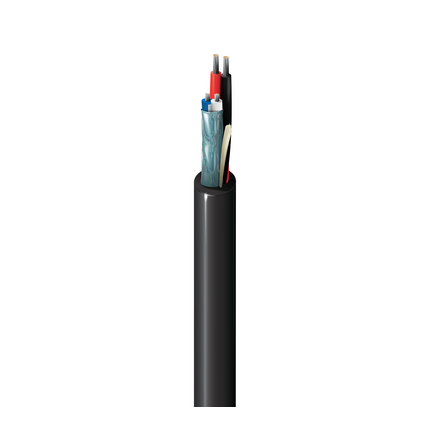

Belden 1502R 010500 Media Control, 1 Pair 22 AWG TC, 2 Cond. 18 AWG, Riser
Multimedia Control Cable, 1 Pair 22 AWG stranded (7x30) tinned copper (data) with FPE insulation, Beldfoil® shield w/ drain, 2 Conductor 18 AWG stranded (16x30) tinned copper conductor (power) with F-R PVC insulation, Riser, F-R PVC jacket
Ordering Details
- Manufacturer Part Number: 1502R 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825116004
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: Multi-Media & Lighting Automation / Control, AMX™ and Crestron ® Control Systems
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.025 in (0.64 mm); Nom. Insulation Diameter: 0.079 in (2.0 mm); Color Code: Blue & White, Red & Black; Notes: HDPE
- Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.073 in (1.9 mm); Color Code: Red & Black
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: Tinned Copper (TC)
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.039 in (0.99 mm); Nom. Diameter: 0.25 in (6.4 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.25 in (6.4 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Inner Shield DCR: 17.42 Ohm/1000ft (57.15 Ohm/km); Nom. Capacitance Cond-to-Cond: 14 pF/ft (46 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 38 pF/ft (120 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.232 µH/ft (0.761 µH/m); Max. Current: 6 Amps per conductor @ 30°C
- Element: Conductor(s); Nom. Conductor DCR: 6.9 Ohm/1000ft (23 Ohm/km); Nom. Capacitance Cond-to-Cond: 29 pF/ft (95 pF/m); Nom. Inductance: 0.168 µH/ft (0.551 µH/m); Max. Current: 14 Amps per conductor @ 30°C
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C to +75°C
- Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 65.3 lbs (29.6 kg)
- Bulk Cable Weight: 40 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Riser, Indoor
- Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 1502P
Product Notes
- Notes: Sequential footage marking every two feet.
History
- Update and Revision: Revision Number: 0.537 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
