Belden 1471A 0105000 Inst, 24 Pr #18+1c #22 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC ITC CMG - Black, 5,000 ft Reel

$71,654.99
SKU:
1471A 0105000
Shipping:
Calculated at Checkout
Color:
Black
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1471A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1471A 0105000 Inst, 24 Pr #18+1c #22 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC ITC CMG

UL Instrumentation, 24 Pair 18+22AWG (7x26+7x30) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES

Ordering Details

  • Manufacturer Part Number: 1471A 0105000
  • Color: Black
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825115267
  • Manufacturer Footnote: C Z

Supplied as one 5,000 ft Reel.

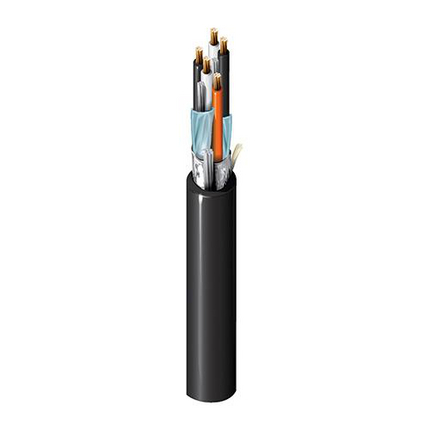

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

  • Element: Pair(s); No. of Elements: 24; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
  • Element: Comm Wire(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.017 in (0.43 mm); Color Code: Black, White and Numbered
  • Element: Comm Wire(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.019 in (0.48 mm); Color Code: Orange
  • Element: Comm Wire(s); Shield Type: No Shield
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.074 in (1.9 mm); Nom. Diameter: 0.961 in (24.4 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.961 in (24.4 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 5.86 Ohm/1000ft (19.2 Ohm/km)
  • Element: Comm Wire(s); Nom. Conductor DCR: 14.7 Ohm/1000ft (48.2 Ohm/km)
  • Nom Outer Shield DCR: 4 Ohm/1000ft (13 Ohm/km)
  • UL Voltage Rating: 300 V (CMG, PLTC, UL AWM 2464), 150 V (ITC)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Stationary Min.: 9.6 in (240 mm); Installation Min.: 9.6 in (240 mm)
  • Max. Pull Tension: 1105 lbs (501.2 kg)
  • Bulk Cable Weight: 478.8 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: UL1685 (FT4 Loading), FT4, 1202
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.558 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Resources

Belden 1471A Product Information
