Belden 1423A 0601000 RS232/422 Low Cap, #24-6pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω - Chrome

$3,626.99
SKU:
1423A 0601000
Shipping:
Calculated at Checkout
Color:
Chrome
Manufacturer Status:
Active
Product Family:
1423A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1423A 0601000 RS232/422 Low Cap, #24-6pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω

Computer EIA RS-232/422 Cable, 6-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 1423A 0601000
  • Color: Chrome
  • UPC/EAN: 612825115052
  • Manufacturer Footnote: C

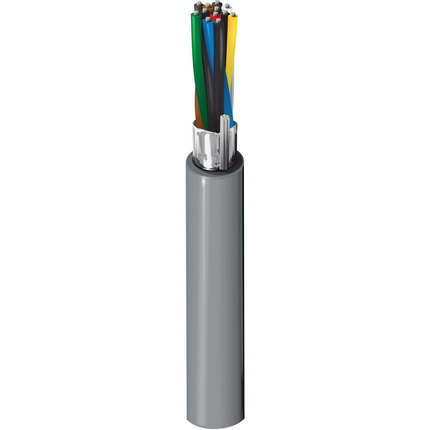

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Pair(s); No. of Elements: 6; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.0125 in (0.318 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.319 in (8.10 mm)
  • Overall Cable Diameter (Nominal): 0.319 in (8.10 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 24 Ohm/1000ft (79 Ohm/km); Nom. Capacitance Cond-to-Cond: 13 pF/ft (43 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 22 pF/ft (72 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.213 µH/ft (0.699 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 1.8 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 13 Ohm/1000ft (43 Ohm/km)
  • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

  • Operating: -20°C to +80°C
  • Max. Pull Tension: 66 lbs (30 kg)
  • Bulk Cable Weight: 44 lbs/1000ft (65 kg/km)

Standards and Compliance

  • Flammability / Reaction to Fire: UL1685 UL Loading
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CM
  • AWM Compliance: AWM 2919
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.

History

  • Update and Revision: Revision Number: 0.332 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 1423A Product Information
