Belden 1392P 8771000 Media Control, #22-1pr BC, #18-2c BC, CMP - Natural, 1,000 ft Reel

$1,010.99
SKU:
1392P 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1392P
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1392P 8771000 Media Control, #22-1pr BC, #18-2c BC, CMP

Lighting & Automation Cable, Plenum-CMP, 1 shielded (data) pair 22 AWG stranded bare copper, FEP insulation, 2-18 AWG stranded bare copper conductors unshielded, FEP insulation (power), Flamarrest® jacket

Ordering Details

  • Manufacturer Part Number: 1392P 8771000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825114239

Supplied as one 1,000 ft Reel.

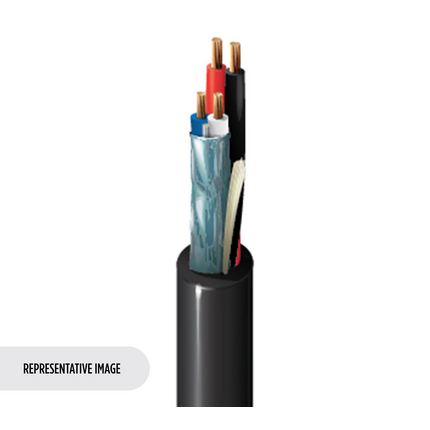

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Multi-Media & Lighting Automation / Control, AMX™ and Crestron ® Control Systems

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
  • Element: Conductor(s); No. of Elements: 2; Size: 18 AWG; Stranding: 16x30; Material: BC - Bare Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.023 in (0.58 mm); Nom. Insulation Diameter: 0.074 in (1.9 mm); Color Code: Blue & White
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.068 in (1.7 mm); Color Code: Red, Black
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.205 in (5.21 mm)
  • Overall Cable Diameter (Nominal): 0.205 in (5.21 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 16.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 14 pF/ft (46 pF/m); Nom. Characteristic Impedence: 100 Ohm; Max. Current: 3.8 Amps per Conductor at 25ºC
  • Element: Conductor(s); Nom. Conductor DCR: 6.9 Ohm/1000ft (23 Ohm/km); Nom. Capacitance Cond-to-Cond: 29 pF/ft (95 pF/m); Max. Current: 7.2 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: 0°C to +75°C
  • Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
  • Max. Pull Tension: 65.3 lbs (29.6 kg)
  • Bulk Cable Weight: 29 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Non-Plenum Number: 1392A

Product Notes

  • Notes: Sequential footage marking every two feet.

History

  • Update and Revision: Revision Number: 0.496 Revision Date: 09-07-2025

Resources

Belden 1392P Product Information
