Belden 1335A 0031000 Fieldbus, 2 C #16 Str TC, PO Ins, OS+TC Brd, PVC Jkt, CM

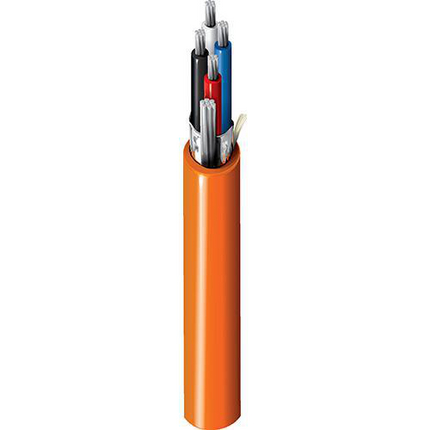

Fieldbus, 2 Conductor 16AWG (7x24H) Tinned Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, Orange PVC Outer Jacket, CM
Ordering Details
- Manufacturer Part Number: 1335A 0031000
- Color: Orange
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825112167
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.
Construction Details
- Size: 16; Stranding: 7x24; Material: TC - Tinned Copper
- Material: PP - Polypropylene; Color Code: Blue & Orange
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.34 in; Ripcord: Yes
Electrical Characteristics
- Nom. Conductor DCR: 4.2 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Shield: 45 pF/ft (150 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Velocity of Prop.: 66%; Max. Current: 8 Amps per Conductor
- Nom. Insertion Loss (Attenuation): 0.066 dB/100ft
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -30°C to +90°C
- Max. Pull Tension: 84 lbs (38 kg)
- Bulk Cable Weight: 79 lbs (36 kg)
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL1685 UL Loading
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 725, Article 727, Article 800, CM, ITC, PLTC
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
History
- Update and Revision: Revision Number: 0.511 Revision Date: 10-27-2026
- Footnote: C - CRATE REEL PUT-UP.
