Belden 1303E 0101640 CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC PVC upjacketed - Black, 1,640 ft Reel

Belden 1303E 0101640 CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC PVC upjacketed

CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC PVC upjacketed

Ordering Details

• Manufacturer Part Number: 1303E 0101640
• Color: Black
• Length: 1,640 ft
• Put-Up: Reel
• UPC/EAN: 612825381815

Supplied as one 1,640 ft Reel.

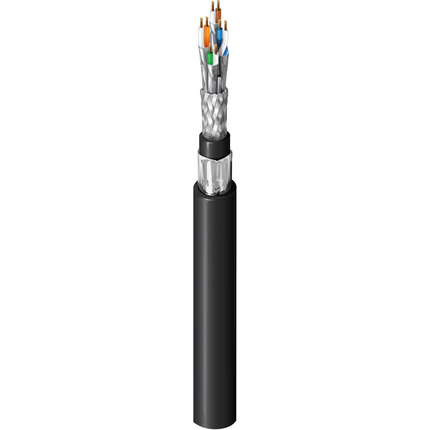

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

• Suitable Applications: Field deployable CAT6a patch horizontal and building backbone cable; AVB, Dante, CobraNEt, eSnake, Ethersound, Digital audio over Ethernet; Support current and future Category 6A and 6 applications, such as: 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM; Compatible connectors Belden R301601 000S1 (T568A) and R301602 000S1 (T568B)

Construction Details

• Element: Individual Shielded Pair; Size: 24 AWG; Stranding: 7x32; Material: BC - Bare Copper; No. of Pairs: 4

• Element: Individual Shielded Pair; Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 1.4 mm (0.055 in); Color Code: White & Blue, White & Orange, White & Green, White & Brown

• Description: 4 shielded pairs twisted together

• Element: Individual Shielded Pair; Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%

• Inner Shield Table Notes: Aluminum facing outside

• Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 80%; Drainwire Type: 26 AWG (7x34) TC

• Layer: 1; Material: PVC - Polyvinyl Chloride; Nom. Diameter: 7.2 mm (0.28 in)
• Layer: 2; Separator: non-Woven Tape; Material: PVC - Polyvinyl Chloride; Nom. Diameter: 8.7 mm (0.34 in)

• Outer Jacket1 Table Notes: Matte Finish, Rugged Sheath
• Overall Cable Diameter (Nominal): 8.7 mm (0.34 in)

Electrical Characteristics

• Max. Conductor DCR: 95 Ohm/km (29 Ohm/1000ft); Max. Mutual Capacitance: 56 pF/m (17 pF/ft); Max. Capacitance Unbalance: 160 pF/100m; Nom. Characteristic Impedance: 100 Ohm

• Max. Delay Skew: 25 ns/100m; Nom. Velocity of Prop.: 77%

• Frequency [MHz]: 1; Max. Insertion Loss (Attenuation): 2.5 dB/100m; Min. NEXT [dB]: 75.3; Min. PSNEXT [dB]: 72.3; Min. ACR [dB]: 72.8; Min. PSACR [dB]: 69.8; Min. ACRF (ELFEXT) [dB]: 68; Min. PSACRF (PSELFEXT) [dB]: 65; Min. RL (Return Loss) [dB]: 20; Min. PSANEXT [dB]: 67; Min. PSAACRF [dB]: 67; Min. TCL [dB]: 40; Min. ELTCTL [dB]: 35
• Frequency [MHz]: 4; Max. Insertion Loss (Attenuation): 4.6 dB/100m; Min. NEXT [dB]: 66.3; Min. PSNEXT [dB]: 63.3; Min. ACR [dB]: 61.7; Min. PSACR [dB]: 58.7; Min. ACRF (ELFEXT) [dB]: 56; Min. PSACRF (PSELFEXT) [dB]: 53; Min. RL (Return Loss) [dB]: 23; Min. PSANEXT [dB]: 67; Min. PSAACRF [dB]: 66.2; Min. TCL [dB]: 34; Min. ELTCTL [dB]: 23
• Frequency [MHz]: 10; Max. Insertion Loss (Attenuation): 7.1 dB/100m; Min. NEXT [dB]: 60.3; Min. PSNEXT [dB]: 57.3; Min. ACR [dB]: 53.2; Min. PSACR [dB]: 50.2; Min. ACRF (ELFEXT) [dB]: 48; Min. PSACRF (PSELFEXT) [dB]: 45; Min. RL (Return Loss) [dB]: 25; Min. PSANEXT [dB]: 67; Min. PSAACRF [dB]: 58.2; Min. TCL [dB]: 30; Min. ELTCTL [dB]: 15
• Frequency [MHz]: 16; Max. Insertion Loss (Attenuation): 9 dB/100m; Min. NEXT [dB]: 57.2; Min. PSNEXT [dB]: 54.2; Min. ACR [dB]: 48.3; Min. PSACR [dB]: 45.3; Min. ACRF (ELFEXT) [dB]: 43.9; Min. PSACRF (PSELFEXT) [dB]: 40.9; Min. RL (Return Loss) [dB]: 25; Min. PSANEXT [dB]: 67; Min. PSAACRF [dB]: 54.1; Min. TCL [dB]: 28; Min. ELTCTL [dB]: 10.9
• Frequency [MHz]: 31.2; Max. Insertion Loss (Attenuation): 12.6 dB/100m; Min. NEXT [dB]: 52.9; Min. PSNEXT [dB]: 49.9; Min. ACR [dB]: 50.4; Min. PSACR [dB]: 47.3; Min. ACRF (ELFEXT) [dB]: 38.1; Min. PSACRF (PSELFEXT) [dB]: 35.1; Min. RL (Return Loss) [dB]: 23.6; Min. PSANEXT [dB]: 67; Min. PSAACRF [dB]: 48.3; Min. TCL [dB]: 25.1; Min. ELTCTL [dB]: 5.1
• Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation): 18 dB/100m; Min. NEXT [dB]: 48.4; Min. PSNEXT [dB]: 45.4; Min. ACR [dB]: 30.4; Min. PSACR [dB]: 27.4; Min. ACRF (ELFEXT) [dB]: 32.1; Min. PSACRF (PSELFEXT) [dB]: 9.1; Min. RL (Return Loss) [dB]: 21.5; Min. PSANEXT [dB]: 65.6; Min. PSAACRF [dB]: 42.3; Min. TCL [dB]: 22
• Frequency [MHz]: 100; Max. Insertion Loss (Attenuation): 23 dB/100m; Min. NEXT [dB]: 45.3; Min. PSNEXT [dB]: 42.3; Min. ACR [dB]: 22.3; Min. PSACR [dB]: 19.3; Min. ACRF (ELFEXT) [dB]: 28; Min. PSACRF (PSELFEXT) [dB]: 25; Min. RL (Return Loss) [dB]: 20.1; Min. PSANEXT [dB]: 62.5; Min. PSAACRF [dB]: 38.2; Min. TCL [dB]: 20
• Frequency [MHz]: 125; Max. Insertion Loss (Attenuation): 25.8 dB/100m; Min. NEXT [dB]: 43.8; Min. PSNEXT [dB]: 40.8; Min. ACR [dB]: 18; Min. PSACR [dB]: 15; Min. ACRF (ELFEXT) [dB]: 26.1; Min. PSACRF (PSELFEXT) [dB]: 23.1; Min. RL (Return Loss) [dB]: 19.4; Min. PSANEXT [dB]: 61; Min. PSAACRF [dB]: 36.3; Min. TCL [dB]: 19
• Frequency [MHz]: 200; Max. Insertion Loss (Attenuation): 33.1 dB/100m; Min. NEXT [dB]: 40.8; Min. PSNEXT [dB]: 37.8; Min. ACR [dB]: 7.7; Min. PSACR [dB]: 4.7; Min. ACRF (ELFEXT) [dB]: 22; Min. PSACRF (PSELFEXT) [dB]: 19; Min. RL (Return Loss) [dB]: 18; Min. PSANEXT [dB]: 58; Min. PSAACRF [dB]: 32.2; Min. TCL [dB]: 17
• Frequency [MHz]: 250; Max. Insertion Loss (Attenuation): 37.3 dB/100m; Min. NEXT [dB]: 39.3; Min. PSNEXT [dB]: 36.3; Min. ACR [dB]: 2; Min. PSACR [dB]: -1; Min. ACRF (ELFEXT) [dB]: 20; Min. PSACRF (PSELFEXT) [dB]: 17; Min. RL (Return Loss) [dB]: 17.3; Min. PSANEXT [dB]: 56.5; Min. PSAACRF [dB]: 30.2; Min. TCL [dB]: 16
• Frequency [MHz]: 300; Max. Insertion Loss (Attenuation): 41.1 dB/100m; Min. NEXT [dB]: 38.1; Min. PSNEXT [dB]: 35.1; Min. ACR [dB]: -3; Min. PSACR [dB]: -6; Min. ACRF (ELFEXT) [dB]: 18.5; Min. PSACRF (PSELFEXT) [dB]: 15.5; Min. RL (Return Loss) [dB]: 17.3; Min. PSANEXT [dB]: 55.3; Min. PSAACRF [dB]: 28.7
• Frequency [MHz]: 500; Max. Insertion Loss (Attenuation): 54.3 dB/100m; Min. NEXT [dB]: 34.8; Min. PSNEXT [dB]: 31.8; Min. ACR [dB]: -19.5; Min. PSACR [dB]: -22.5; Min. ACRF (ELFEXT) [dB]: 14; Min. PSACRF (PSELFEXT) [dB]: 11; Min. RL (Return Loss) [dB]: 17.3; Min. PSANEXT [dB]: 52; Min. PSAACRF [dB]: 24.2

• High Frequency Table Notes: Reference standard: IEC 61156-6

• Frequency: 1 Mhz; Max. Transfer Impedance: Max. 50 mOhm/m
• Frequency: 10 Mhz; Max. Transfer Impedance: Max. 100 mOhm/m
• Frequency: 30 Mhz; Max. Transfer Impedance: Max. 200 mOhm/m
• Frequency: 100 Mhz; Max. Transfer Impedance: Max. 1000 mOhm/m

• Transfer Impedance Class: Grade 2

• Screening Class: Type Ib
• Screening Table Notes: Coupling Attenuation

• Voltage Rating: 72 V DC

Mechanical Characteristics

• Operating: -30°C to +60°C; Installation: 0°C To +50°C; Storage: -30°C To +60°C

• Motion: Trailing/Bending; Number of Cycles: 2,000,000; Radius: 80 mm; Speed: 5 m/s; Acceleration: 5 m/s²; Traverse Length: 5 m

• Table Notes: Drag chain test

• Stationary Min.: 32 mm (1.3 in); Installation Min.: 64 mm

• Max. Pull Tension: 75 N (17 lbf)
• Bulk Cable Weight: 83 kg/km

Standards and Compliance

• Environmental Suitability: Indoor
• Flammability / Reaction to Fire: IEC 60332-1-2
• IEEE Compliance: PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
• Data Category: Category 6A
• TIA/EIA Compliance: ANSI/TIA 568.2-D
• ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
• CENELEC Compliance: EN 50173-1, Segregation class according EN50174-2 = c
• European Directive Compliance: EU CE Mark, REACH
• UK Regulation Compliance: UKCA Mark

Product Notes

• Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system.

History

• Update and Revision: Revision Number: 0.545 Revision Date: 02-20-2026
