Belden 1212A 010500 Instrument Medical Interconnect, #26-6c, TC, PVC, O/A Foil, PVC Jkt, CL2X - Black

$3,272.99
SKU:
1212A 010500
Shipping:
Calculated at Checkout
Color:
Black
Manufacturer Status:
Active
Product Family:
1212A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

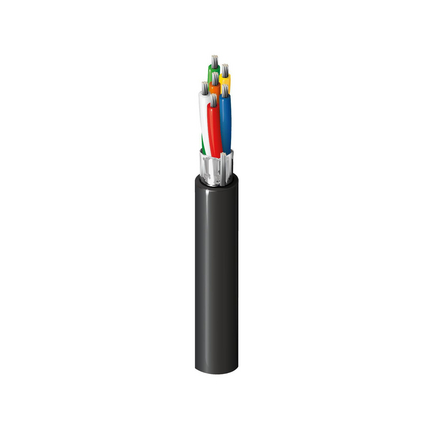

Belden 1212A 010500 Instrument Medical Interconnect, #26-6c, TC, PVC, O/A Foil, PVC Jkt, CL2X

Computer, Instrument & Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket.

Ordering Details

  • Manufacturer Part Number: 1212A 010500
  • Color: Black
  • UPC/EAN: 612825108474
  • Manufacturer Footnote: C

Product Overview

  • Suitable Applications: for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

  • Element: Conductor(s); No. of Elements: 6; Size: 26; Stranding: 7x34; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.048 in (1.2 mm); Color Code: Red, Blue, Green, Orange, Yellow, White
  • Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Coverage: 100%; Drainwire Type: 26 AWG (7x34) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.0365 in (0.927 mm); Nom. Diameter: 0.220 in

Electrical Characteristics

  • Nom. Conductor DCR: 44.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 26 pF/ft (85 pF/m); Nom. Velocity of Prop.: 60%; Max. Current: 1.12 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 15.5 Ohm/1000ft (50.9 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -20°C To +80°C
  • Stationary Min.: 2.2 in (56 mm); Installation Min.: 2.2 in
  • Max. Pull Tension: 22.4 lbs (10.2 kg)
  • Bulk Cable Weight: 26 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: VW-1, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, CL2X
  • AWM Compliance: AWM 2464
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: AMP is a registered trademark of AMP, Inc.

History

  • Update and Revision: Revision Number: 0.401 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
