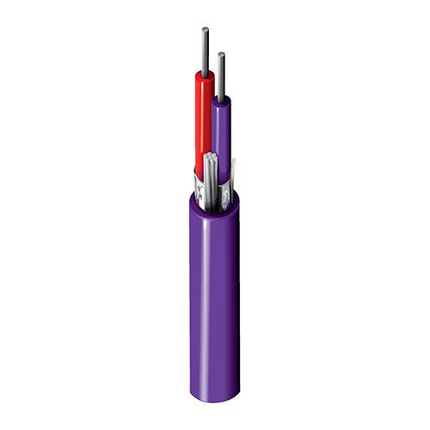

Belden 1101A 0071000 Type EX Thermocouple, 1 Pr #16 Sol, PVC Ins Pur, Red, OS, Purple PVC Jkt, 300V PLTC ITC CMG - Violet, 1,000 ft Reel

$5,264.99
SKU:
1101A 0071000
Shipping:
Calculated at Checkout
Color:
Violet
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1101A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1101A 0071000 Type EX Thermocouple, 1 Pr #16 Sol, PVC Ins Pur, Red, OS, Purple PVC Jkt, 300V PLTC ITC CMG

Type EX Thermocouple, 1 Pair 16AWG (Solid) Chromel+Constantan, PVC Insulation Pur, Red Color Code, Overall Beldfoil® Shield, Purple PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES

Ordering Details

  • Manufacturer Part Number: 1101A 0071000
  • Color: Violet
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825106883
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC)

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: Solid; Material: Chromel & Constantan
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.093 in (2.4 mm); Color Code: Purple & Red
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.264 in (6.71 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.264 in (6.71 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Capacitance Cond-to-Cond: 25 pF/ft (82 pF/m); Nom. Capacitance Cond-to-Shield: 51 pF/ft (170 pF/m); Nom. Inductance: 0.18 µH/ft (0.59 µH/m)
  • Electricals Table Notes: Conductor DCR (Nom): 165 Ohm/1000ft (Chromel), 121 Ohm/1000ft (Constantan)
  • Nom Outer Shield DCR: 38 Ohm/1000ft (120 Ohm/km)
  • UL Voltage Rating: 300 V (PLTC, CMG, UL AWM 2464), 150 V (ITC)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Stationary Min.: 2.6 in (66 mm); Installation Min.: 2.6 in (66 mm)
  • Max. Pull Tension: 83 lbs (38 kg)
  • Bulk Cable Weight: 38 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: UL1685 (FT4 Loading), FT4, T-29-520, 1202
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA MC 96.1-1982 Type EX

Product Notes

  • Notes: Chromel and Constantan are Hoskins Manufacturing Company trademarks.

History

  • Update and Revision: Revision Number: 0.563 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Resources

Belden 1101A Product Information
