Belden 1099A 0102000 Inst, 12 Tri #16 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet - Black, 2,000 ft Reel

$45,825.99
SKU:
1099A 0102000
Shipping:
Calculated at Checkout
Color:
Black
Length:
2,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1099A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1099A 0102000 Inst, 12 Tri #16 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet

UL Instrumentation, 12 Triad 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Ordering Details

  • Manufacturer Part Number: 1099A 0102000
  • Color: Black
  • Length: 2,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825106753
  • Manufacturer Footnote: C Z

Supplied as one 2,000 ft Reel.

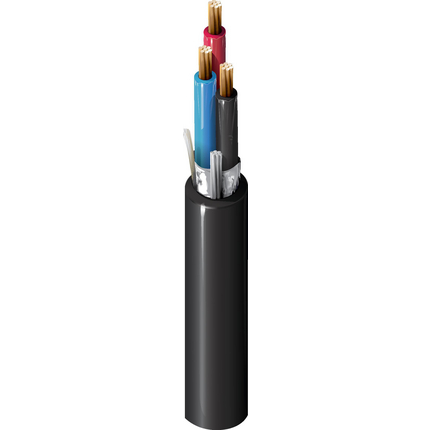

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners

Construction Details

  • Element: Triad(s); No. of Elements: 12; Size: 16 AWG; Stranding: 7x24; Material: BC - Bare Copper
  • Element: Triad(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.101 in (2.57 mm); Color Code: ICEA Chart E1
  • Element: Triad(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC; Notes: each triad
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (7x24) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.089 in (2.3 mm); Nom. Diameter: 1.065 in (27.05 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 1.065 in (27.05 mm)

Electrical Characteristics

  • Element: Triad(s); Nom. Conductor DCR: 4.36 Ohm/1000ft; Nom. Inner Shield DCR: 4.99 Ohm/1000ft (16.4 Ohm/km); Max. Current: 7 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 2.74 Ohm/1000ft (8.99 Ohm/km)
  • UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

  • UL Temperature: 90°C Dry, 90°C Wet; Operating: -30°C to 90°C Dry/Wet
  • Stationary Min.: 12.8 in (325 mm); Installation Min.: 12.8 in (325 mm)
  • Max. Pull Tension: 1343 lbs (609.2 kg)
  • Bulk Cable Weight: 674 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
  • NEC / UL Compliance: Article 336, Article 760, NPLF, TC-ER
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.627 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
