Belden 1076A 0107500 Inst, 4 Pr #20+22 Str BC, PVC Ins E1, IS/OS, Blk PVC Jkt, 300V PLTC ITC CMG - Black, 7,500 ft Reel

$27,816.99
SKU:
1076A 0107500
Shipping:
Calculated at Checkout
Color:
Black
Length:
7,500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1076A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1076A 0107500 Inst, 4 Pr #20+22 Str BC, PVC Ins E1, IS/OS, Blk PVC Jkt, 300V PLTC ITC CMG

UL Instrumentation, 4 Pair 20+22AWG (7x28) Bare Copper, PVC Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES

Ordering Details

  • Manufacturer Part Number: 1076A 0107500
  • Color: Black
  • Length: 7,500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825105916
  • Manufacturer Footnote: C Z

Supplied as one 7,500 ft Reel.

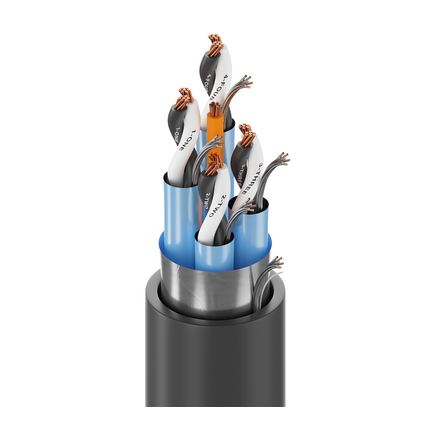

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

  • Element: Pair(s); No. of Elements: 4; Size: 20 AWG; Stranding: 7x28; Material: BC - Bare Copper
  • Element: Comm Wire(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
  • Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Insulation Diameter: 0.071 in (1.8 mm); Color Code: ICEA Chart E1
  • Element: Comm Wire(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.067 in (1.7 mm); Color Code: Orange
  • Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: each pair
  • Element: Comm Wire(s); Shield Type: No Shield
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.444 in (11.3 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.444 in (11.3 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 9.5 Ohm/1000ft; Nom. Inner Shield DCR: 12.86 Ohm/1000ft (42.19 Ohm/km); Max. Current: 5.6 Amps per conductor @ 30°C
  • Element: Comm Wire(s); Nom. Conductor DCR: 17.2 Ohm/1000ft (56.4 Ohm/km); Max. Current: 9.6 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 6.5 Ohm/1000ft (21 Ohm/km)
  • UL Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC)

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C to +105°C
  • Stationary Min.: 5.2 in (130 mm); Installation Min.: 5.2 in (130 mm)
  • Max. Pull Tension: 132 lbs (59.9 kg)
  • Bulk Cable Weight: 100 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, T-29-520, IEEE 1202 FT4
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM 2464
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.617 Revision Date: 04-10-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Resources

Belden 1076A Product Information
