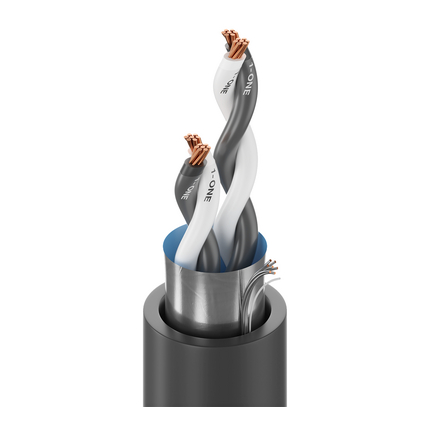

Belden 1069A 0107500 Inst, 2 Pr #16 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet - illustration only; refer to description for cable color and put-up

Belden 1069A 0107500 Inst, 2 Pr #16 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet - Black, 7,500 ft Reel

$25,783.99
SKU:
1069A 0107500
Shipping:
Calculated at Checkout
Color:
Black
Length:
7,500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1069A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 1069A 0107500 Inst, 2 Pr #16 Str BC, PVC-NYL Ins E1, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet

UL Instrumentation, 2 Pair 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Ordering Details

  • Manufacturer Part Number: 1069A 0107500
  • Color: Black
  • Length: 7,500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825105770
  • Manufacturer Footnote: C Z

Supplied as one 7,500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

  • Element: Pair(s); No. of Elements: 2; Size: 16 AWG; Stranding: 7x24; Material: BC - Bare Copper
  • Element: Pair(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.022 in (0.56 mm); Nom. Insulation Diameter: 0.101 in (2.57 mm); Color Code: ICEA Chart E1
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 16 AWG (7x24) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.048 in (1.2 mm); Nom. Diameter: 0.420 in (10.7 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.420 in (10.7 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 4.36 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 40 pF/ft (130 pF/m); Max. Current: 14 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 3.24 Ohm/1000ft (10.6 Ohm/km)
  • UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

  • UL Temperature: 90°C Dry, 90°C Wet; Operating: -30°C to 90°C Dry/Wet
  • Stationary Min.: 5.0 in (130 mm); Installation Min.: 5.0 in (130 mm)
  • Max. Pull Tension: 179 lbs (81.2 kg)
  • Bulk Cable Weight: 94 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
  • NEC / UL Compliance: Article 336, Article 760, NPLF, TC-ER
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): 07-KA080011-MSHA

History

  • Update and Revision: Revision Number: 0.612 Revision Date: 04-10-2026
  • Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Resources

Belden 1069A Product Information
