Description
Belden 1036A 0065000 Inst, 1 Tri #18 Str BC, PVC Ins E1, OS, Blk PVC Jkt, 300V PLTC ITC CMG
UL Instrumentation, 1 Triad 18AWG (7x26) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES
Ordering Details
- Manufacturer Part Number: 1036A 0065000
- Color: Blue, Light
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825105145
- Manufacturer Footnote: C Z
Supplied as one 5,000 ft Reel.

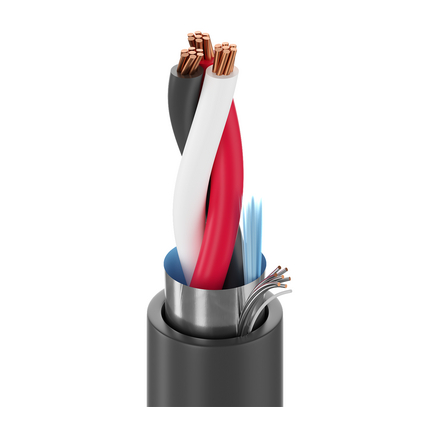

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners
Construction Details
- Element: Triad(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: BC - Bare Copper
- Element: Triad(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.019 in (0.48 mm); Nom. Insulation Diameter: 0.083 in (2.1 mm); Color Code: ICEA Chart E1
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
- Separator: PP - Polypropylene Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.272 in (6.91 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.272 in (6.91 mm)
Electrical Characteristics
- Element: Triad(s); Nom. Conductor DCR: 6.79 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 50 pF/ft (160 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 14 Amps per conductor @ 30°C
- Nom Outer Shield DCR: 5.07 Ohm/1000ft (16.6 Ohm/km)
- UL Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Stationary Min.: 3.2 in (81 mm); Installation Min.: 3.2 in (81 mm)
- Max. Pull Tension: 81 lbs (37 kg)
- Bulk Cable Weight: 38 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 FT4
- NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.602 Revision Date: 04-10-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
