Product Overview

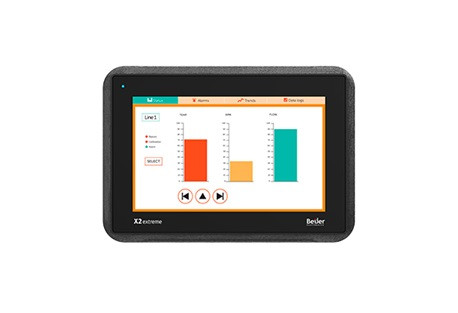

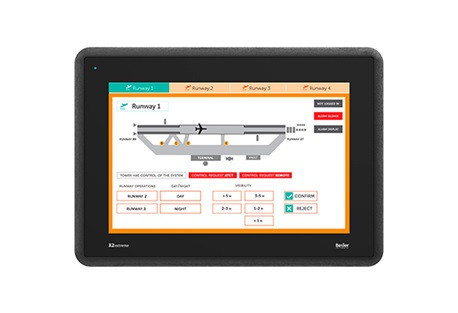

X2 Extreme
Rugged HMIs for tough environments
X2 extreme panels are certified by all major classification societies. Designed to perform in rugged outdoor environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high pressure wash-downs.
X2 extreme panels are available in 7, 12 and 15 inches, all in 3 versions: Panel mount standard and high-performance versions, and fully sealed high-performance versions. All high-performance versions offer high brightness display and optional integrated CODESYS PLC functionality.
Features:
Wide screen format:
- X2 panels offer wide screen format, designed to succeed the traditional 4:3 square aspect ratio.
UL, CE, FCC and KCC certificates:
- The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
iX software – why you’ll love our hardware:
- The iX software gives you smart communication tools. iX combines top-class vector graphics and easyto-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
Fast forward engineering with WARP:
- Create integrated HMI, control, drives and data communication solutions with WARP Engineering Studio. WARP automatically configures all hardware, software and communication in your application.
Custom design or non-branded:
- Profile your brand or go for neutral. X2 panels offer custom designed or non-branded front foils, as alternatives to the standard Beijer Electronics branded versions.
Powerful ARM Cortex-A9 processor:
- Powerful dual or quad core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
Robust aluminum housing:
- Robust aluminum housing with IP66 front. Resistant to direct rain, snow or high-pressure washdowns, dirt, grime and dust.
Extreme operating temperature-30°C to +70°C:
- Extreme -30°C to +70° C operating temperature range guarantees trouble-free use in the harshest environments.
Marine certifications:
- The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
Internal CANopen bus:
- It’s easy to interface with controllers using the internal CANopen bus.
SD memory card:
- Card holder and USB connection are located behind the lid on the back of the panel for smart memory expansion, project backup and application loading.
Dimmable backlight:
- Comfortable and safe operation in high and low ambient light conditions. Backlight is continuously dimmable to very low brightness.
High brightness display:
- All high-performance versions feature 1,000 cd/m2 backlight providing excellent readability in high ambient light levels such as sunlight.
Add control by CODESYS:
- All high-performance versions offer integrated CODESYS IEC 61131-3 PLC functionality running on dedicated CPU cores for safe and fast program execution. Just add remote I/Os for a scalable, cost-effective solution.
Certified for hazardous environments:
- Certified for use in hazardous areas where gases, vapors and dust are present.
Internal isolation:
- Internal isolation conforms to marine standards for both burst and surge immunity.
High vibration:
- Panels are tested to 4 g RMS sweep sine for vibration and 40 g 11 ms half sine for shock.
Panel mount:
- Panel mount versions hold IP66, NEMA 4X/12 and UL Type 4X/12 ingress protection rating for the front and conform to ATEX Zone 2 and ATEX Zone 22 certification.
Fully sealed:
- Fully sealed versions with M12 connectors with IP66 ingress protection rating and ATEX/IECEx Zone 2 and Zone 22 (IP65) certification.
