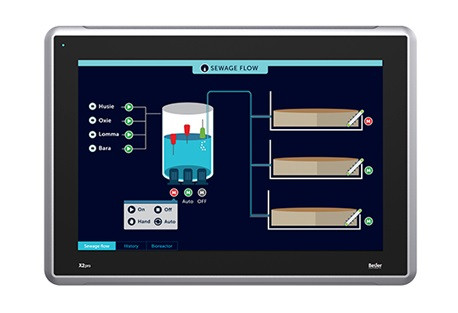

X2 Pro
High performance HMIs for all automation needs
X2 pro includes a range of high performance industrial panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.
X2 pro panels are available in 4, 7, 10, 12, 15 and 21 inches.
Features:
Wide screen format:
- X2 panels offer wide screen format, designed to succeed the traditional 4:3 square aspect ratio.
UL, CE, FCC and KCC certificates:
- The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
iX software – why you’ll love our hardware:
- The iX software gives you smart communication tools. iX combines top-class vector graphics and easy-to-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
Fast forward engineering with WARP:
- Create integrated HMI, control, drives and data communication solutions with WARP Engineering Studio. WARP automatically configures all hardware, software and communication in your application.
Custom design or non-branded:
- Profile your brand or go for neutral. X2 panels offer custom designed or non-branded front foils, as alternatives to the standard Beijer Electronics branded versions.
Powerful ARM Cortex-A9 processor:
- Powerful single or dual core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
Robust aluminum housing:
- Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.
Wide operating temperature -10°C to +60°C:
- The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.
Marine certifications:
- The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
Internal CANopen and optional bus modules:
- It’s easy to interface with controllers using the internal CANopen bus or optional CiX CAN, Profibus or MPI modules.
SD memory card:
- Card holder and USB connection are located behind the lid on the back of the panel for smart memory expansion, project backup and application loading.
