Product Overview

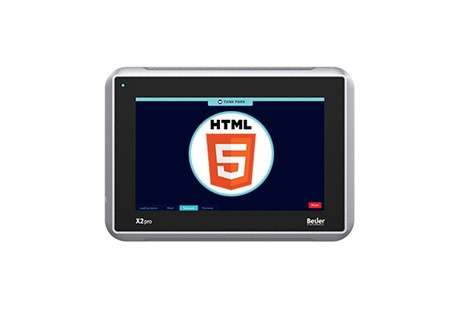

X2 pro 7 web
7'' web client HMI
- 800 × 480 pixel (16:9) TFT-LCD touch screen
- TFT display
- 4GB EMMC
- Ethernet 2x100 Mbit
- -10°C to +60°C operating temperature
- DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
- CE, FCC, KCC, UL approvals
General description
| Part number | 630023505 |
| Life cycle status | Active |
| Warranty | 2 year |
Certifications
| General | CE, FCC, KCC, UL 61010-2-201 |
| Marine | KR, LR, ABS, BV, CCS, NK, DNV GL |
Mechanical
| Mechanical size | 204 x 143 x 50mm |
| Mounting option | Panel Mount, VESA 75 x 75 |
| Number of touches | 1million finger touch operations |
| Touch type | Resistive |
| Cut-out size | 189 x 128mm |
| Weight | 0.8 kg |
| Housing material | Powder-coated aluminum, Gray |
Power
| Input voltage | 24 VDC (18 to 32 VDC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies. |
| Power consumption (max) | 14.4W |
| Input fuse | Internal DC fuse |
System
| CPU | i.MX6DualLite, Dual Cortex-A9 1.0GHz 512kBL2cache |
| RAM | 1 GB |
| FLASH | 4GB EMMC |
Software
| Operating system | Linux |
| Web browser | Chromium in Kiosk mode |
Display
| Size diagonal | 7" diagonal |
| Resolution | 800x480 pixels |
| Backlight | LED Backlight |
| Backlight life time | 20000 hours |
| Backlight brightness | 350 cd/m2 |
| Backlight dimming | Dimming in system menu |
| Display type | TFT-LCD with LED backlight |
Communication serial
| Number of serial ports | 1 Port 9pin DSUB |
| Serial port 1 | Not in use |
| Serial port 2 | Not in use |
| Serial port 3 | Not in use |
Ethernet communication
| Number of Ethernet ports | 2 |
| Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
| Ethernet port 2 | 1x10/100 Base-T (shielded RJ45) |
Expansion interface
| SD card | SD and SDHC |
| USB | 1xUSB 2.0 500mA |
Environmental
| Operating temperature | -10°C to +60°C |
| Storage temperature | -20°C to +70°C |
| Shock | 15g, half-sine, 11ms according to IEC60068-2-27 |
| Vibration | 1g, according to IEC 60068-2-6, Test Fc |
| Sealing front | IP65, NEMA 4X/ 12 and UL Type 4X/ 12 |
| Sealing back | IP20 |
| Humidity | 5% – 85% non-condensed |
| Altitude (max) | < 3000m |
