Product Overview

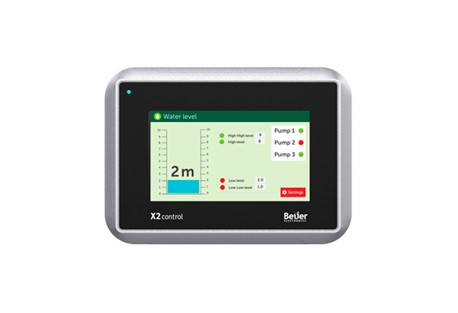

X2 Control
Integrated CODESYS control
X2 control panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware. Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications. Add standard distributed I/Os and you’ll get an elegant, scalable and cost-effective solution that’s cutting-edge.
X2 control panels are available in 4, 7, 10, 12 and 15 inches.
Features:
Wide screen format:
- X2 panels offer wide screen format, designed to succeed the traditional 4:3 square aspect ratio.
UL, CE, FCC and KCC certificates:
- The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
iX software – why you’ll love our hardware:
- The iX software gives you smart communication tools. iX combines top-class vector graphics and easyto-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
Fast forward engineering with WARP:
- Create integrated HMI, control, drives and data communication solutions with WARP Engineering Studio. WARP automatically configures all hardware, software and communication in your application.
Custom design or non-branded:
- Profile your brand or go for neutral. X2 panels offer custom designed or non-branded front foils, as alternatives to the standard Beijer Electronics branded versions.
Powerful ARM Cortex-A9 processor:
- Powerful dual or quad core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
Robust aluminum housing:
- Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or washdowns, dirt, grime and dust.
Wide operating temperature -10°C to +60° C:
- The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.
Marine certifications:
- The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
Internal CANopen and optional bus modules:
- It’s easy to interface with controllers using the internal CANopen bus or optional CiX CAN, Profibus or MPI modules.
SD memory card:
- Card holder and USB connection are located behind the lid on the back of the panel for smart memory expansion, project backup and application loading.
2 Ethernet ports as standard:
- Panels have two built-in Ethernet ports as standard for communication with other equipment.
EtherCAT as standard:
- X2 panels support communication with super-fast EtherCAT as standard.
Control by CODESYS:
- Integrated IEC 61131-3 PLC functionality by CODESYS, running on dedicated CPU cores for safe and fast program execution. Just add remote I/Os for a scalable, cost-effective solution.
Built-in digital outputs:
- 10, 12 and 15 inch panels have built-in digital outputs for direct connection of alarms, signal lights, etc.
Configuration freedom:
- Applications remain elegantly slim with integrated control in the panel. Add remote I/Os to fit your needs, and select between three major fieldbuses – EtherCAT, Modbus RTU and Modbus TCP.
Less risk of error with one system:
- Two separate PLC and HMI systems mean twice the risk of error. X2 control changes all that. Simply configure your system with WARP and you’re done. It’s never been easier to create applications.
