Description
Overview
Back-to-back camera installation made easy

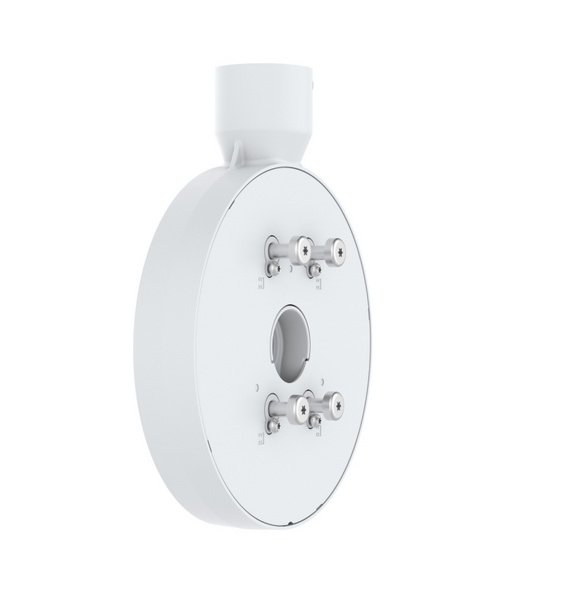

AXIS T94V01C Dual Camera Mount is a highly versatile accessory that allows back-to-back installation of two Axis cameras for panoramic coverage. It is compatible with a wide range of Axis network cameras, including dome cameras, box cameras, and bullet cameras. It can be easily combined with diverse Axis mounting accessories with 1.5” NPS threaded interface, for mounting on walls, poles, and under ceilings. AXIS T94V01C Dual Camera Mount has an IK10 rating for impact resistance, which safeguards it against vandalism. It is suitable for both indoor and outdoor use.
To ensure physical stability, do not use AXIS T94V01C for single camera installations.
Features
- Save time when installing multiple Axis cameras
- Drill fewer holes in walls
- Compatible with a wide range of Axis cameras and Axis mounts
- Robust design and impact resistant
- Suitable for indoor and outdoor use
Specifications
- Manufacturer: Axis Communications
- Manufacturer part number: 01457-001
- Product / ordering variant: AXIS T94V01C Dual Camera Mount
- Axis region: AR, AU, BR, CN, EU, IN, JP, KR, UK, US
- Supported products: Compatible with a wide range of Axis cameras.; For specific models, see the Accessory selector on; www.axis.com/products/accessory-selector
- Maximum load: 10 kg (22 lb)
- Cable routing: Internal
- Casing: Mount: impact resistant aluminum; Cover plates: UV resistant plastic; Color: white NCS S 1002-B
- Environment: Indoor; Outdoor
- Sustainability: PVC free
- Approvals Safety: Safety; IEC/EN/UL 62368-1
- Dimensions: Height: 250 mm (9 13/16 in)
- Weight: 800 g (1.8 lb)
- Included accessories: Lock nut; Cable ties
- Required accessories: Axis mounts with 1.5 “ NPS thread
- Optional accessories: AXIS T91A06 Pipe Adapter 3/4-1.5"
