Description
Overview

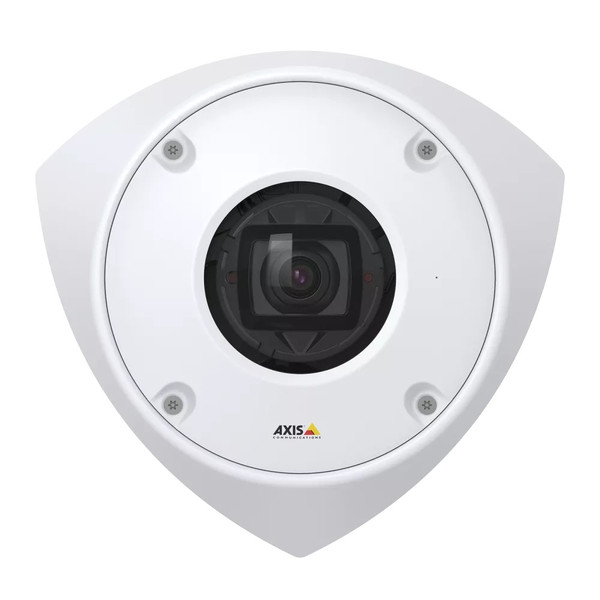

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
Features
- Anti-ligature, robust (IK11)
- Corner camera – no blind spots
- WDR and invisible IR (940 nm)
- Compact design – easy to install
- Zipstream supporting H.264 and H.265
Specifications
- Manufacturer: Axis Communications
- Manufacturer part number: 01767-001
- Image sensor: CMOS
- Image sensor size: 1/2.5"
- Wide dynamic range: WDR
- Min illumination/ light sensitivity (Color): 0.23 lux
- Min illumination/ light sensitivity (B/W): 0.05 lux
- Max video resolution: 2304x1728
- Max frames per second: 25/30
- Day and Night functionality: Yes
- Focal length: 2.4 mm
- Horizontal field of view: 125 °
- Vertical field of view: 95 °
- Zipstream: Yes
- H.264: High, Main
- H.265: Yes
- Audio Support: Yes
- Built-in microphone: Yes
- PoE Class: 3
- Signed OS: Yes
- Secure keystore: TPM (CC EAL4+, FIPS 140-2 Level 2)
- Built-in IR: Yes
- Local storage (memory card slot): Yes
- Operating temperature: -20 to 50 °C
- Vandal rating: IK11
- IP rating: IP66, IP6K9K
- Designed for repaint: Yes
- Sustainability: BFR/CFR free, PVC free
Axis provides documentation for this model on its product support page. Refer to the linked datasheet for full model specifications.
