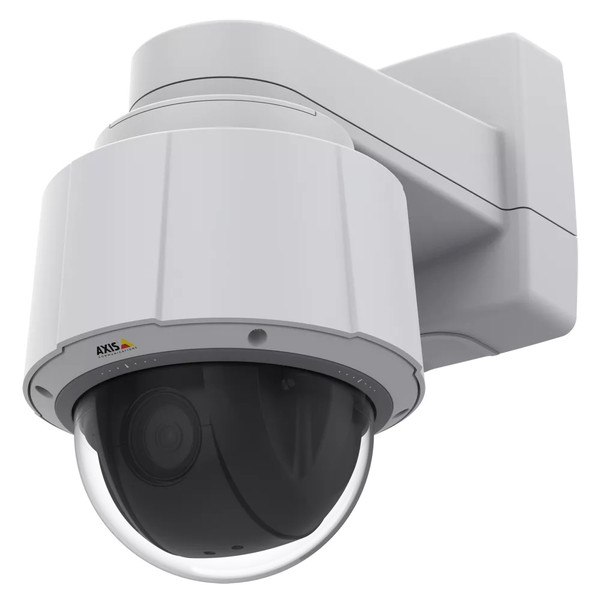

AXIS Q6074 PTZ Network Camera

$2,609.00
SKU:
01968-004
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

AXIS Q6074 PTZ Network Camera Indoor PTZ with HDTV 720p and 30x optical zoom AXIS Q6074 PTZ Network Camera offers HDTV 720p and 30x optical zoom for great overviews and excellent details. This high-performance indoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. With Axis Lightfinder 2.0 the camera delivers low-light images with more saturated colors and sharper images of moving objects. Plus, enhanced security features such as signed firmware and secure boot ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264/ H.265 significantly lowers bandwidth and storage requirements.

Features

  • HDTV 720p with 30x optical zoom
  • Axis Lightfinder 2.0
  • Autotracking 2 and orientation aid
  • Built-in analytics
  • TPM, FIPS 140-2 level 2 certified

Specifications

  • Manufacturer: Axis Communications
  • Manufacturer part number: 01968-004
  • Manufacturer specification variants: AXIS Q6074 50 Hz; AXIS Q6074 60 Hz. Values separated by / follow this variant order where applicable.
  • Image sensor: CMOS
  • Image sensor size: 1/2.8"
  • Lightfinder: Lightfinder 2.0
  • Wide dynamic range: WDR
  • Min illumination/ light sensitivity (Color): 0.1 lux
  • Min illumination/ light sensitivity (B/W): 0.002 lux
  • Signed OS: Yes
  • Secure boot: Yes
  • TPM: Yes
  • Local storage (memory card slot): Yes
  • Operating temperature: 0 to 50 °C
  • IP rating: IP52
  • Designed for repaint: Yes
  • Autotracking version: Autotracking 2
  • Orientation aid: orientation aid PTZ
  • Max video resolution: 1280x720
  • Max frames per second: 50/60
  • Day and Night functionality: Yes
  • Electronic image stabilization: Yes
  • Focal length: 4.25-127.5 mm
  • Horizontal field of view: 63.8-2.6 °
  • Vertical field of view: 38.0-1.47 °
  • Pan range: 360 endless
  • Tilt range: 0 to 90
  • Guard tour: preset position tour
  • Optical zoom: 30
  • Digital zoom: 12
  • Zipstream: Yes
  • H.264: Baseline, High, Main
  • H.265: Yes
  • Audio Support: Yes
  • Audio detection: Yes
  • Alarm inputs/outputs: 4
  • PoE Class: 4

Axis provides documentation for this model on its product support page. Refer to the linked datasheet for full model specifications.
