Product Overview

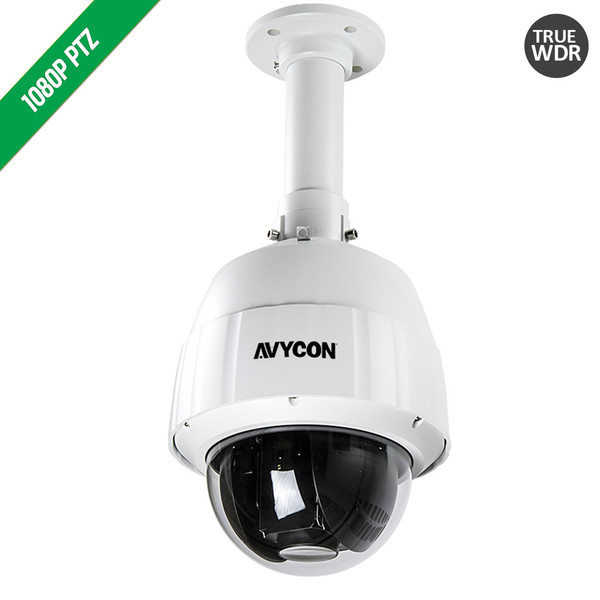

HD-TVI IN/OUTDOOR 30X IR PTZ CAMERA
- 0 Lux Minimum Illumination
- IR Light MTBF Reaching up to 30,000 hours
- 1/3” High Performance CMOS, up to 1920 x 1080 Resolution
- ±0.1° Preset Accuracy
- Self-adaptive to Pelco-P/D Protocol
- 3D Intelligent positioning Function
- Power-off Memory Function: Restore PTZ & Lens Status after Reboot
- Built-in Temperature Sensor, with display of internal temperature
- Lightning Protection, Surge Protection and Voltage Transient Protection
- IP66 Standard (Outdoor Dome)
- Impact Protection: IEC60068-2-75 Test, EH, 20J; EN50102, up to IK10
- RS-485 Communication Diagnosis
- Scheduled PTZ Movement
- HD-TVI (UTC (Up the Coax) Function) & CVBS Analog Out – Dual BNC
- Auto Focus, Auto White Balance, Backlight Compensation and Auto / Manual Day & Night Switch
- Privacy Masks Programmable
- 3D DNR, Digital WDR
- 360° Endless Pan Range and -5° ~ 90° Tilt Range
- 300°/s Pan Preset Speed and 200°/s Tilt Preset Speed
- 0.1° ~ 250°/s Manual Pan Speed and 0.1° ~ 150°/s Manual Tilt Speed
- 256 Presets Programmable; Preset Image Freezing Capability
- 8 Patrols, up to 32 presets per patrol
- 4 Patterns, with the total recording time not less than 10 minutes
- Proportional Zoom Function
- Park Action: Auto Call up of PTZ Movement, after a defined time of inactivity
