Description
DESCRIPTION

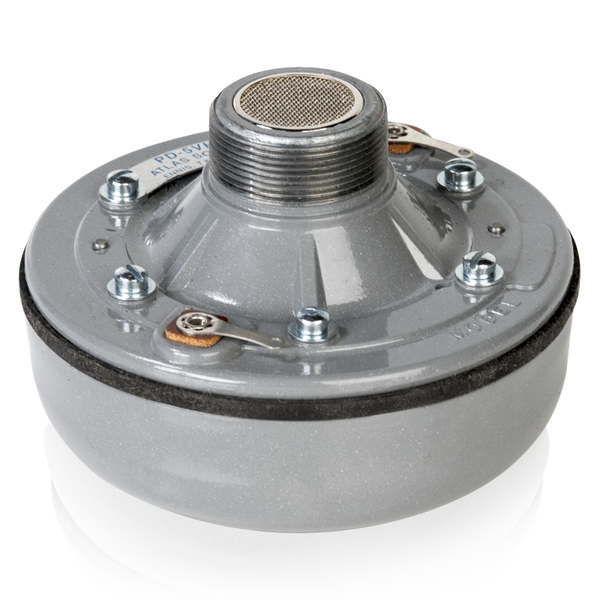

Model PD-5VH is a 40-watt driver with 2" voice coil machined to optimum tolerances.
Model PD-5VH has an Alnico V-DG magnet which offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. It also provides terminals for matching direct to the 16 ohm voice coil. PD-5VH offers a plane wave frequency response of 110Hz - 4.1kHz.
The durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread.
Units are finished in grey, baked epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
FEATURES
- 40-Watt Power Rating
- Environment-Resistant Construction for Indoor/Outdoor Use
- Extended Frequency Response Range for Optimum Intelligibility
- Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction
