DESCRIPTION

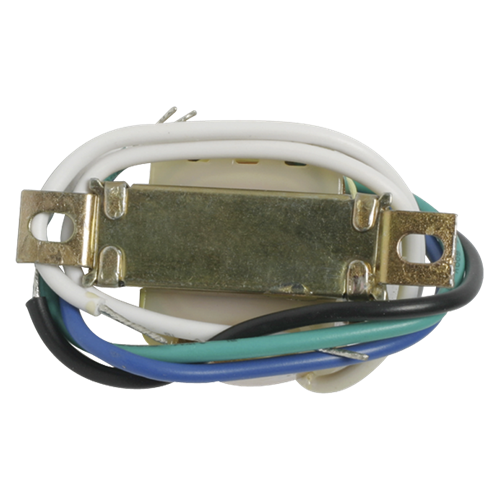

HX-33-4525, specifically designed for use with intercom applications when connecting a 45 ohm speaker to a constant voltage system. The small size of these transformers makes them ideal for use in compact spaces. The insertion loss will not exceed 1.5dB and the frequency response is +2dB from 150Hz - 9kHz. The primary taps are .5 and 1 watt. Secondary impedance is 45 ohms.
FEATURES
- 25V Line Matching Transformer
- 5 & 1 W Taps
- Intercom & General PA
SPECIFICATIONS
| Height | 1 3/16" (3.02 cm) |
| Width | 1 7/16" (3.65 cm) |
| Depth | 1/2" (1.19 cm) |
| Shipping Weight | 0.28 lbs (0.13 kgs) |
