Description
The GD87W is a high performance coaxial speaker package with performance specifications identical to the legendary AtlasIED Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87W without any noticeable sonic or performance differences.
This coaxial speaker features a 45Hz -19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105° (2kHz octave band). The GD87 combines a full-size 8" (203mm) dia., low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1m).
The speaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz - 15kHz. The primary taps are 1, 2, 4, and 8 watts.

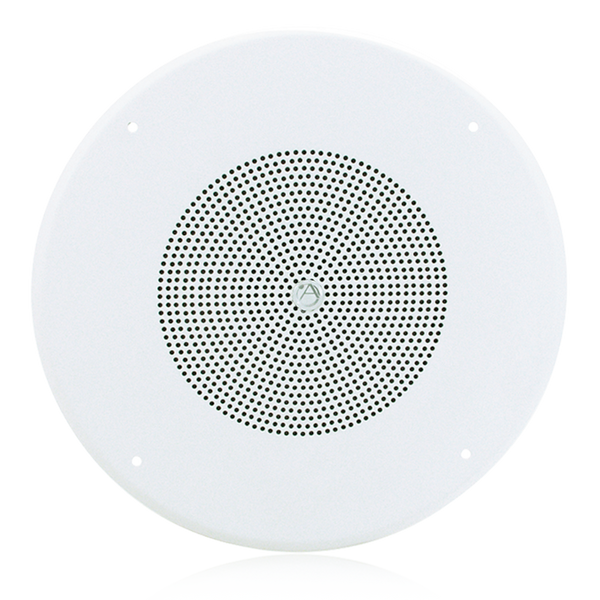

The GD87W includes a factory installed 62-8 style CRS baffle with concealed speaker mounting studs and includes screw mount hardware. The baffle finish is white powder coat epoxy.
- Individually Packaged for Stocking & Ordering Convenience
- Safety Listed to UL 1480 & UL 2043
- High Quality Factory Installed 8 Watt Line Matching Transformer and White CRS Baffle
- Industry Standard 8" (203mm) Coaxial, 16 Watt, Loudspeaker
- Offers Proven Performance with Wide Frequency Response
