Product Overview

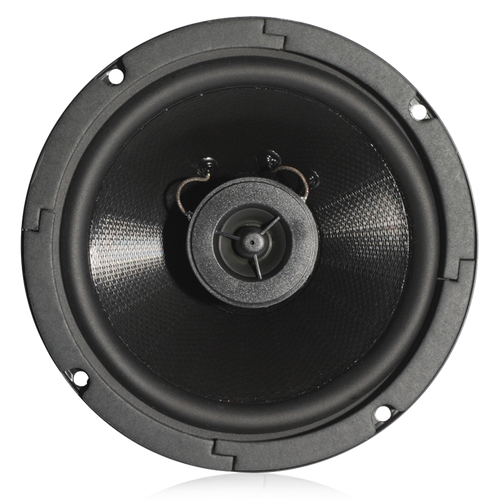

Model FA136 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assemblies are manufactured with high quality materials including a Kevlar®, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.

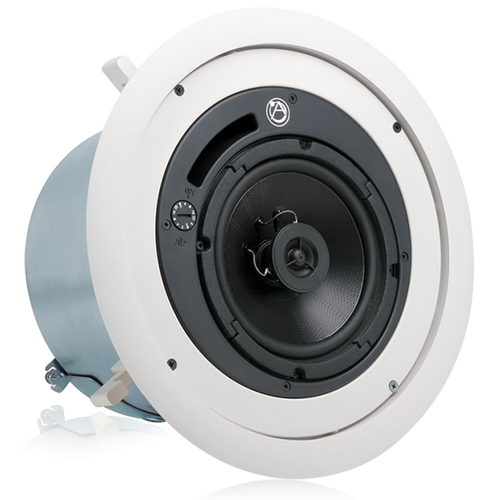

Model FA136 has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles. Strategy Series high performance enclosure Model FA97-6 is a deep backbox with a volume of (.17 ft3) complete with acoustic batting. The enclosure front-loads the speaker, is offered with and without knockouts (NK) and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps, or to tighten conventional screws. For limited depth installations, mounting ring Model FAPR-6 and low profile enclosure model FA95-6 are offered. Grilles are equipped with three serrated studs for hardware-free, push-on installation.
- Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion
- Front Loads into Specially Designed, Acoustically Matched Enclosure
- Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles
- Patented, Easy-to-Install Loudspeaker Mounting System
- Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
- UL Certified, Safety Listed to UL1480
SPECIFICATIONS
Other Information
Model FA136 (U.S. Patent #5206464) is a high-fidelity, coaxial, 6" speaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assemblies are manufactured with high quality materials including a Kevlar®, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.
Model FA136 has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles. Strategy Series high performance enclosure Model FA97-6 is a deep backbox with a volume of (.17 ft3) complete with acoustic batting. The enclosure front-loads the speaker, is offered with and without knockouts (NK) and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps, or to tighten conventional screws. For limited depth installations, mounting ring Model FAPR-6 and low profile enclosure model FA95-6 are offered. Grilles are equipped with three serrated studs for hardware-free, push-on installation.
- Achieves Fidelity Similar to an 8" (203mm) System with Wider Dispersion
- Front Loads into Specially Designed, Acoustically Matched Enclosure
- Offers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free Grilles
- Patented, Easy-to-Install Loudspeaker Mounting System
- Uses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
- UL Certified, Safety Listed to UL1480
SPECIFICATIONS
