Product Overview
DESCRIPTION

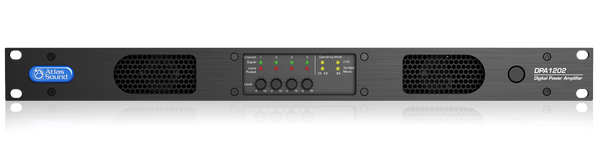

The DPA1202 comes standard with four balanced line inputs and an accessory slot for an optional DPA-DAC4 4-channel Dante™ receiver card or a DPA-AMIX (2) mic / line, (2) AUX input card, giving the DPA1202 a total of 8 inputs. All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ’s, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.
The output level can be assigned to either the front panel potentiometers or to the on board GUI. Wired remote level control can be configured to allow simple control for the end user. Each unit also features GUI based input and output level metering along with assignable mute functions that are triggered via an audio signal or contact closure. Access to the DSP settings is accomplished via computer, tablet or mobile device using a web browser. All settings can be password protected.
The unit also includes a PC based site manager software that automatically searches within a specific network for all DPA amplifiers on the network. It will list them and allow a single click access to any unit. The DPA Site Manager software can do a variety of functions besides locating IP addresses such as; fault reporting, input & output status, standby status and remote activation via a scheduler timer.
The flexibility of the DPA Series amplifiers and comprehensive assortment of local or network control configurations make them an ideal choice in today’s sophisticated commercial audio market.
- Configurable for Use as 2-Channel 70.7V Amplifier
- Configurable for Use as 4-Channel 4Ω Amplifier
- Configurable for Use as Single Channel 70.7V and 2-Channel 4Ω Amplifier
- Networkable with On Board GUI
- Configurable DSP Via GUI
- Site Manager Software with Network Auto-Discovery Fault Reporting, Input & Output Status, Standby Status and Remote Activation via a Scheduler Timer
- User Page with Assignable Input & Output Level Control
- Mute Assignments Triggered Via Audio Signal or Contact Closure
- Audio Sense Turn-On/Off
- Four Balanced Inputs
- Optional Accessory Card Slot for 4-Channel Dante™ Receiver Card or (2) Mic / Line, (2) Aux Input Card
- PC, iOS, & Android Compatible
RESOURCES
