Description

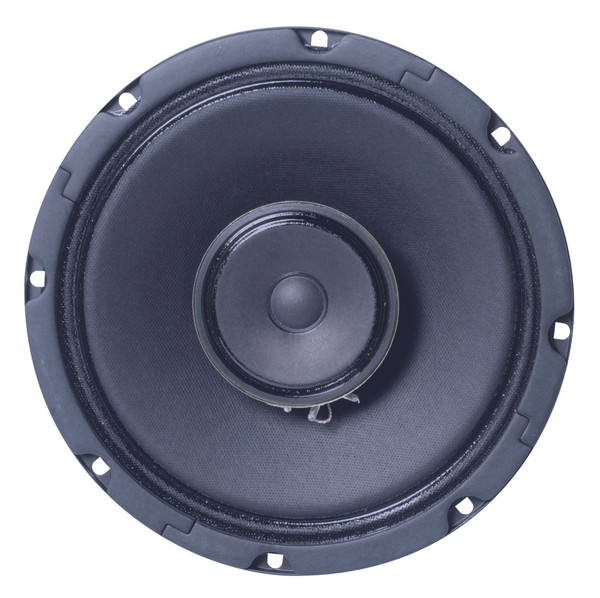

Model C803AT87-HC, A high-quality 16-watt loud speaker with a factory-installed 70.7V 8W linematching transformer
Model C803AT87-HC utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.
The unit is factory treated with AtlasIED's nanotechnology Hyfidrophobic® environmental treatment coating.
- Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
- Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
- Offers Proven Performance with Wide Frequency Response
- Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
- UL Certified, Safety Listed to UL1480 and UL2043
- Factory Treated with Hyfidrophobic Nanotechnology Environmental Treatment Coating
