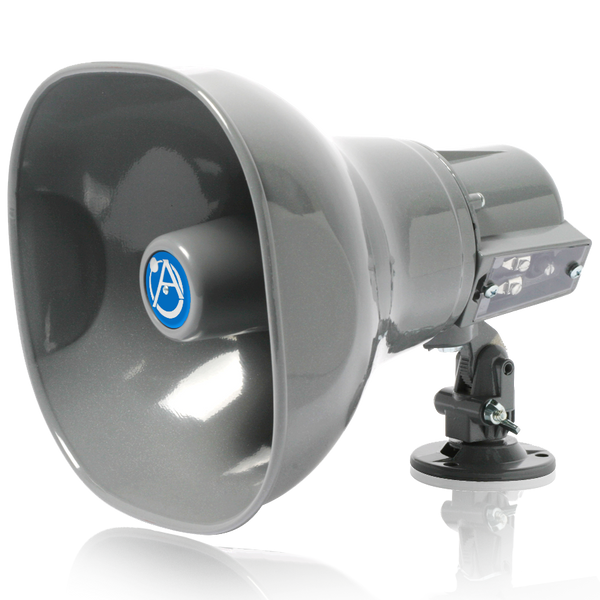

Atlas AP-15 Horn Speaker

The 8-ohm Model AP-15 is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

• Environment Resistant for Outdoor and Indoor Use
• Grey Finish
• High-Efficiency Driver with Proven Performance Reliability
• Omni-Purpose™ Bracket for Precise Positioning
• Superior Intelligibility for Voice and Tone Signaling
• World Recognized for Quality and Dependability

SPECIFICATIONS

Spec Sheet
