Product Overview

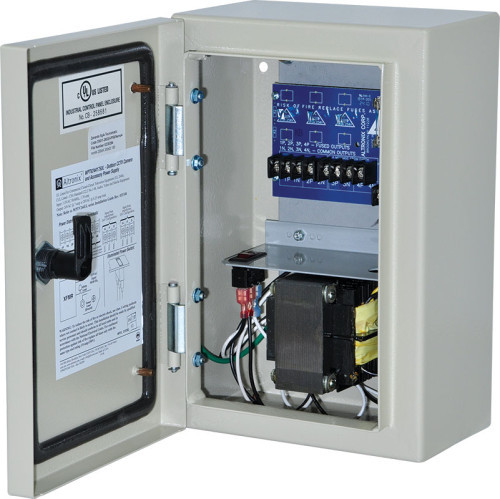

CCTV Power Supply, Outdoor, 1 Fused and 3 PTC Outputs, 24/28VAC @ 7A, 115VAC, WP1 Enclosure
Altronix WPTV244175UL provides power via four (4) protected outputs for CCTV cameras, heaters, and other video accessories.
Input
115VAC, 50/60Hz, 1.76A.
Output
Four (4) protected outputs:
One (1) fuse protected non-power limited output rated at 10A/250VA.
Three (3) Class 2 Rated PTC protected power limited outputs rated @ 2.5A (auto-resettable).
24VAC @ 7A (175VA) supply current or 28VAC @ 6.25A (175VA) supply current
Surge suppression.
Features
AC power LED.
Illuminated power disconnect circuit breaker with manual reset.
Spare fuses provided.
NEMA 4 Rated enclosure for outdoor use.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 86 BTU/Hr.
28VAC: 90 BTU/Hr.
System AC input VA requirement: 202.4VA.
