Description
Power Supply/Charger, Outdoor, Single Output 12/24VDC @ 3.5A, 115/220VAC, WP3 Enclosure

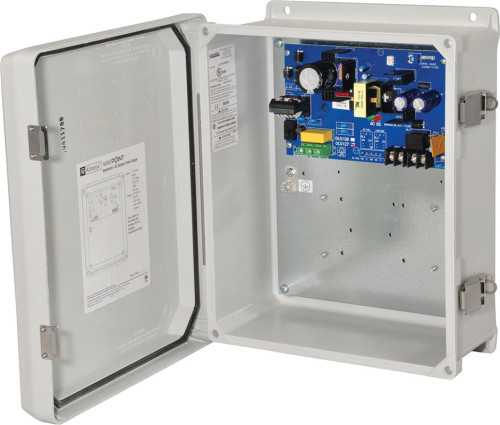

Altronix WayPoint5 DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.
Input
115VAC, 60Hz, 0.95A or 230VAC, 50Hz, 0.6A.
Output
12VDC or 24VDC selectable output.
3.5A continuous supply current.
Filtered and electronically regulated output.
Thermal overload and short circuit protection.
Features
AC and DC power LED indicators.
Ease of installation saves time and eliminates costly labor.
Includes battery leads.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery.
Temperature
Operating - 40° C to 55° C (-40° F to 131° F).
Storage - 40° C to 70° C (-40° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 21 BTU/Hr.
24VDC: 42 BTU/Hr.
System AC input VA requirement:
115VAC: 109.25VA.
230VAC: 138VA.
