Description

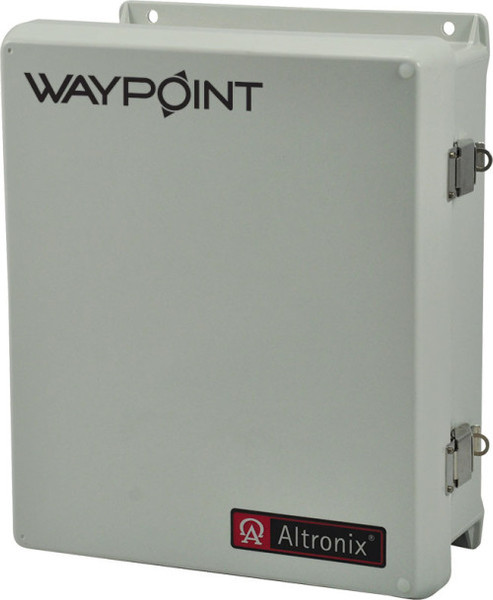

CCTV Power Supply, Outdoor, 2 Fused Outputs, 24/28VAC @ 12.5A, 115/220VAC, WP3 Enclosure
WayPoint30AU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via two (2) fuse protected outputs for powering CCTV Cameras, heaters, and other video accessories.
Input
Input: 115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
Output
Output options:
a. 24VAC @ 12.5A max.
b. 28VAC @ 10A max.
c. Both 24VAC and 28VAC not to exceed 10A max.
Output fuses rated @ 10A/32V.
Visual Indicators
Individual power output LED indicators.
Illuminated master power switch.
Temperature
Operating Temperature:
24VAC @ 12.5A output: -40° C to 60° C (-40° F to 140° F).
28VAC @ 10A output: -40° C to 70° C ( -40° F to 158° F).
Storage Temperature: -20° C to 75° C (-4° F to 167° F).
Relative Humidity: 85%, +/- 5%.
BTU/Hr. (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.
Operating Altitude
- 1000 to 6,561.679 ft. ( -304.8 to 2000m).
