DESCRIPTION

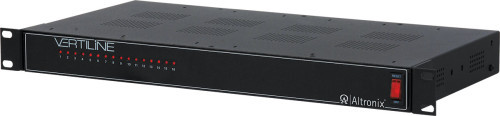

Vertiline33TD Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis. Vertiline Rack Mount Power Supplies are also available in 24VDC and eight (8) outputs configurations.
FEATURES
Input
- 115VAC 60 Hz, 3A input.
Output
- 12VDC outputs rated @ 16A total current max. (1.0A per device, 2.5A max.).
- Sixteen (16) PTC protected power outputs.
- Filtered and electronically regulated.
Features
- Sixteen (16) power LEDs.
- Illuminated master power disconnect circuit breaker with manual reset.
- IEC 320 - 3-wire grounded line cord (detachable).
- Removable terminal blocks with locking screw flange.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 98 BTU/Hr.
- System AC input VA requirement: 345VA.
Enclosure:
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
- Product Weight: 7.95 Lbs. (3.606 kg).
- Shipping Weight: 9.05 Lbs. (4.105 kg).
