Description

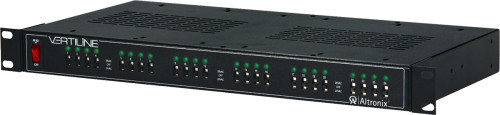

CCTV Power Supply, 24 PTC Outputs, 24/28VAC @ 14A, 115VAC, 1U
Vertiline246CD CCTV Rack Mount Power Supplies provide 24 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. The units feature individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and sixteen (16) output models with various power ratings.
Input
115VAC 60 Hz., 4A.
Output
Twenty-four (24) individually selectable 24VAC or 28VAC power outputs with OFF position.
24VAC or 28VAC @ 14A max. total (0.583A per device, 2.5A max.).
Twenty-four (24) PTC protected outputs rated @ 2.5A.
Main fuse rated @ 15A.
Surge suppression.
Features
Twenty-four (24) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 172 BTU/Hr.
28VAC: 201 BTU/Hr.
System AC input VA requirement: 460VA.
