Product Overview
CCTV Power Supply, 24 Fused Outputs, 24/28VAC @ 10A, 115/220VAC, 1U

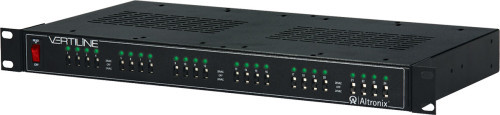

Vertiline24 CCTV Rack Mount Power Supply provides 24 fuse protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression. Vertiline CCTV Rack Mount Power Supplies are also available in eight (8) and sixteen (16) output models with various power ratings.
Input
Selectable 115VAC 60 Hz or 240VAC 50/60 Hz input.
115VAC 60 Hz., 3A.
240VAC 50/60 Hz., 1.6A.
Output
Twenty-four (24) individually selectable 24VAC or 28VAC power outputs with OFF position.
24VAC or 28VAC @ 10A max. total (0.417A per device, 3A max.).
Twenty-four (24) external blade fuse protected outputs rated @ 3A.
Main fuse rated @ 10A.
Surge suppression.
Features
Twenty-four (24) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
IEC 320 - 3-wire grounded line cord (detachable).
Removable terminal blocks with locking screw flange.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 123 BTU/Hr.
28VAC: 143 BTU/Hr.
System AC input VA requirement: 115VAC: 345VA, 240VAC: 384VA.
