Description

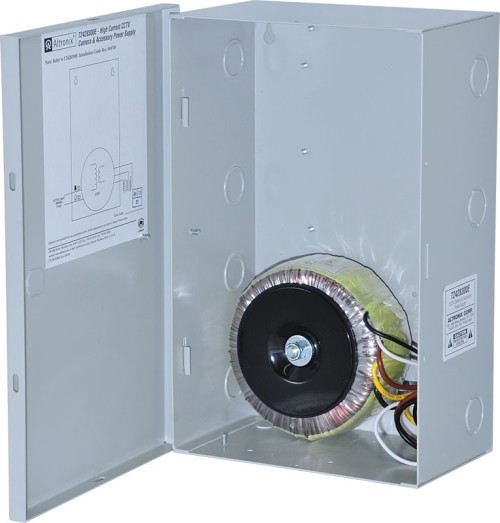

Open Frame Transformer, 24/28VAC @ 300VA, 115VAC, BC200 Enclosure
Altronix T2428300E AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.
Input
115VAC 50/60 Hz, 2.7A.
Fused input protection rated @ 5A/250V.
Output
24VAC @ 14A or 28VAC @ 12.5A supply current.
Features
Fused input protection.
Green grounding lead.
Temperature
Operating 0° C to 49° C ( 32° F to 120° F).
Storage - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 172 BTU/Hr.
28VAC: 179 BTU/Hr.
System AC input VA requirement: 310.5 VA.
