Product Overview

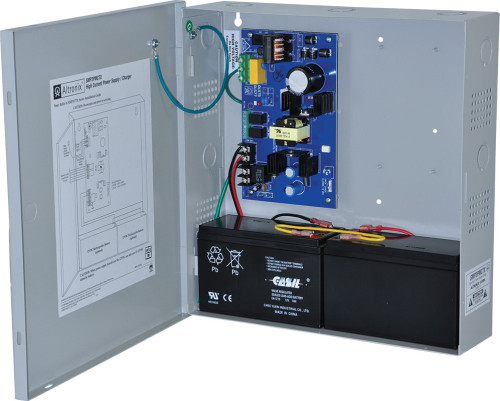

Power Supply Charger, Single Output, 12/24VDC @ 2.5A, 115/220VAC, Supervision, BC300 Enclosure
SMP3PMCTX supervised power supply/charger will convert a 115VAC/230VAC, 50/60Hz input, into a regulated 12VDC or 24VDC output @ 2.5A continuous supply current.
Input
Input 115VAC, 50/60Hz, 0.65A or 230VAC, 50/60Hz, 0.35A.
Output
12VDC or 24VDC selectable output.
2.5A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement:
115VAC: 74.75VA.
230VAC: 80.5VA.
