Product Overview

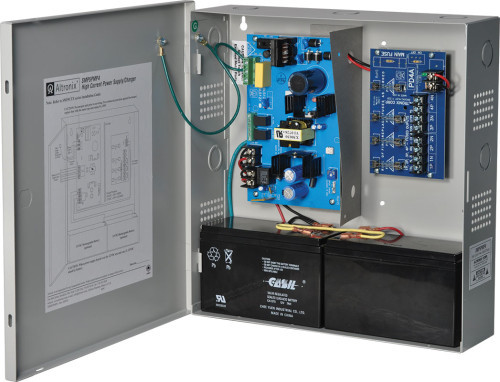

Power Supply Charger, 4 Fused Outputs, 24VDC @ 10A, 115VAC, Supervision, BC300 Enclosure
SMP10PM24P4 is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) 24VDC outputs.
Input
Input 115VAC, 60Hz, 2.7A.
Output
24VDC output.
10A supply current.
Four (4) fuse protected outputs.
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Supervision
AC fail supervision (form "C" contacts).
Battery presence and low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 122 BTU/Hr.
System AC input VA requirement: 310.5VA.
