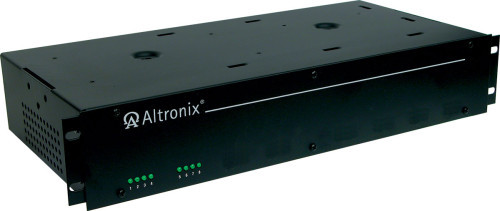

CCTV Power Supply, 8 PTC Class 2 Outputs, 6-15VDC @ 4A, 115VAC, 2U
R615DC8ULCB provides 6-15VDC distributed via eight (8) PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 0.9A.
Output
Eight (8) Class 2 Rated PTC protected outputs (auto-resettable).
6-15VDC @ 4A total output current. (0.5A per device, 2.5A max.)
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 12-31 BTU/Hr.
System ACinput VA requirement: 103.5VA.
Features
Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
