Description
CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 28A, 115VAC, 2U

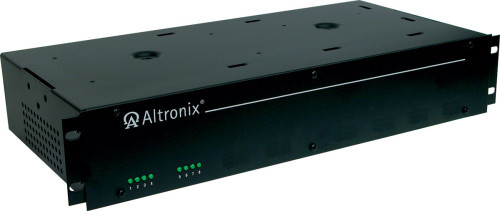

R248600 Rack Mount CCTV Power Supply provides 24 or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 6A.
Output
Eight (8) fuse protected outputs.
24VAC @ 28A (600VA) supply current (3.5A per device, 3.5A max.) or 28VAC @ 25A (600VA) supply current (3.125A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 307 BTU/Hr.
28VDC: 287 BTU/Hr.
System AC input VA requirement: 690VA.
Features
Eight (8) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
