Description

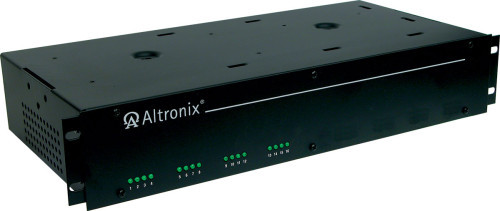

CCTV Power Supply, 16 Fused Isolated Outputs, 24VAC @ 25A, 115VAC, 2U
R2416ULi provides 24VAC distributed via sixteen (16) isolated fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 5.4A.
Output
Sixteen (16) isolated fuse protected outputs.
24VAC @ 25A (600VA) supply current (1.6A per device, 3.5A max.)
Outputs are rated @ 3.5A.
Surge suppression.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 227 BTU/Hr.
System AC input VA requirement: 690VA.
Features
Sixteen (16) power LEDs.
Illuminated master power disconnect circuit breaker with manual reset.
3-wire grounded line cord.
Removable terminal blocks with locking screw flange.
Spare fuses provided.
