Description
Power Supply Charger, Single Output, 12VDC 1A or 24VDC .5A, 115VAC, Board

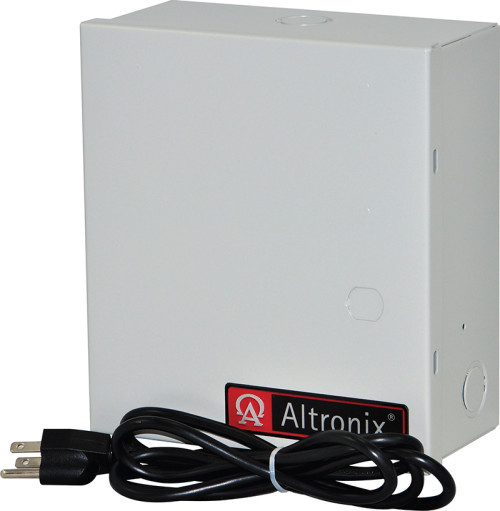

Altronix OLS20E power supply/charger converts 115VAC 50/60Hz inputinto a 12VDC @ 1A or 24VDC @ 0.5A of continuous supply current (refer to specifications). This general purpose power supply has a wide range of application for access control and security system accessories that require additional power.
Input
115VAC, 50/60Hz, 0.5A.
Output
12VDC or 24VDC selectable operation.
0.5A continuous supply current @ 24VDC*; 1A continuous supply current @ 12VDC*.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.3A.
Automatic switch over to stand-by battery when AC fails.
Battery leads included.
Additional Features
AC input and DC output LED indicators.
Includes battery leads.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 6 BTU/Hr.
