Product Overview

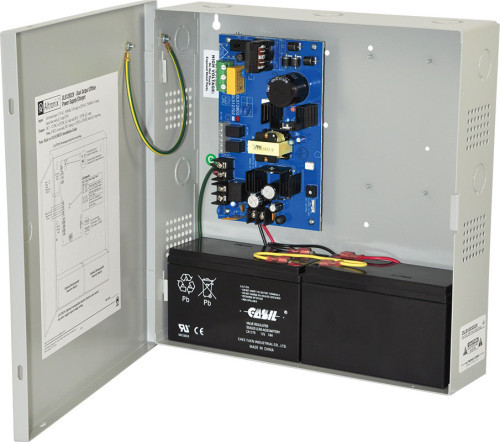

Power Supply Charger, Dual Output, 12/24VDC @ 4A, 115/220VAC, BC300
OLS120D2X dual output power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC/24VDC output and a 12VDC fixed output (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Input
Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
Input fuse rated @ 5A/250V.
Output
Output 1 (DC1) - 12VDC or 24VDC @ 3A and Output 2 (DC2) - 12VDC @ 1A.
Note:
If Output 2 (DC2) is not used, Output 1 (DC1) rating is 12VDC or 24VDC rated @ 4A max.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Features
Power ON/OFF switch.
Includes battery leads.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement:
115VAC: 109.25VA.
230VAC: 138VA.
