Product Overview
Dual 1G Fiber SFP, 2 ports 10/100/1000 PoE/PoE+, configurable for 2x 60W Hi-PoE & 6 ports 10/100 PoE/PoE+; Hardened, Switch Board mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ

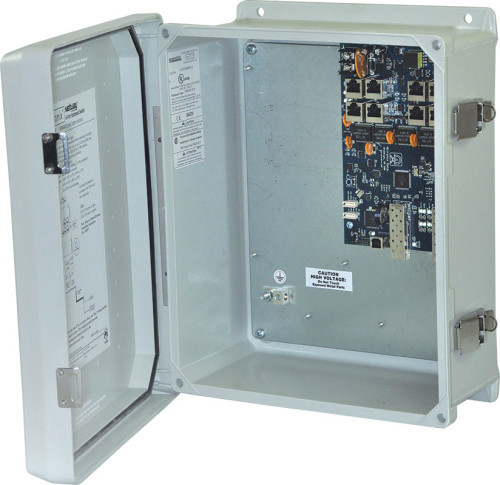

Altronix NetWaySP8WPN PoE+ Outdoor Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports (external 48-55V UL Listed ITE power supply required), passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.
Input
48-55V UL Listed ITE power supply (up to 120W).
Power Output
Eight (8) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
115W total power.
Integral surge protection.
Fiber Port
Two (2) Gigabit SFP ports.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet Ports
Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
VLAN
Multiple management VLAN assignment.
802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095.
LINQ Technology
Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
Temperature
Operating (115W): - 40° C to 75° C ( - 40° F to 167° F)
Storage: - 40° C to 85° C ( - 40° F to 185° F)
Relative Humidity: 85% +/- 5%
Operating Altitude
- 304.8 to 2,000m.
