Product Overview

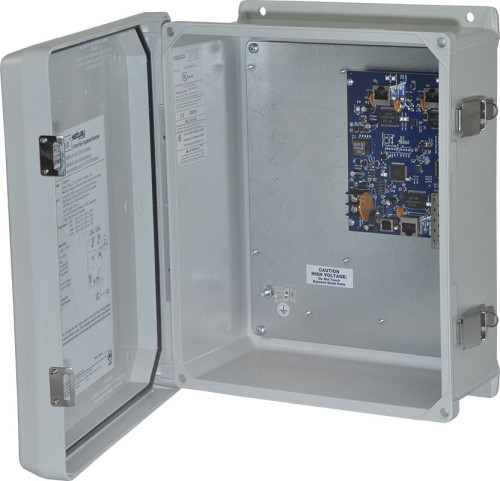

Single 1G Fiber SFP, 3 port 10/100/1000 (2 ports PoE/PoE+ 60W Hi-PoE & 1 port PoE/PoE+); Hardened, Switch Board mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
Altronix NetWaySP3WPN Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and two (2) PoE+/ Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics via the network from anywhere.
Input
48-55V UL Listed ITE power supply (up to 120W)
Power Output
Maximum Power 120W total power:
Two (2) 60W ports (PoE/PoE+ / Hi-PoE).
One (1) 30W port (PoE/PoE+).
10/100/1000 Mbps each port.
IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
Integral surge protection.
Fiber Port
One (1) Gigabit SFP port.
Ethernet Ports
Three (3) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
LINQ Technology
Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
Temperature
Operating: (120W): - 40° C to 75° C ( - 40° F to 167° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
Operating Altitude
- 304.8 to 2,000m.
