Product Overview

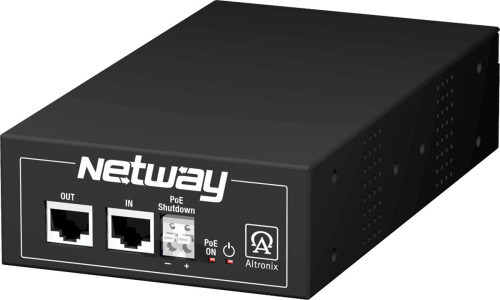

Midspan Injector, Single Port, 10/100/1000, PoE/PoE+/LTPoE++, 70W, 230VAC, Shutdown Trigger
Altronix NetWay1EV is an enhanced 10/100/1000Base-T PoE midspan power injector. It is fully compliant and backwards compatible with PoE (15W) and PoE+ (30W) devices. The NetWay1EV is also capable of sourcing up to 85W with devices incorporating LTPoE++™ 70W, 52.7W & 38.7W, requiring up to 70W of power at up to 100m.
Input
230VAC, 50/60Hz, 0.8A.
Output
IEEE 802.3af (15W) & IEEE 802.3at (30W) compliant.
Supports LTPoE++™ 70W, 52.7W & 38.7W PD compliant devices up to 100m.
Integral short circuit and overload protection.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher structured cable.
Distance: up to 100m.
Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation.
Indicators (LED)
Red LED: PoE ON.
Red LED: Power ON.
Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100Base-T/active.
Temperature
Operating:
85W: - 20° C to 49° C ( - 4° F to 120° F).
55W: - 20° C to 55° C ( - 4° F to 131° F).
Storage:
- 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 32 BTU/Hr.
System AC input VA requirement: 172.5VA.
Operating Altitude
- 304.8m to 609.6m ( - 1,000 ft. to 2,000 ft.).
