Product Overview

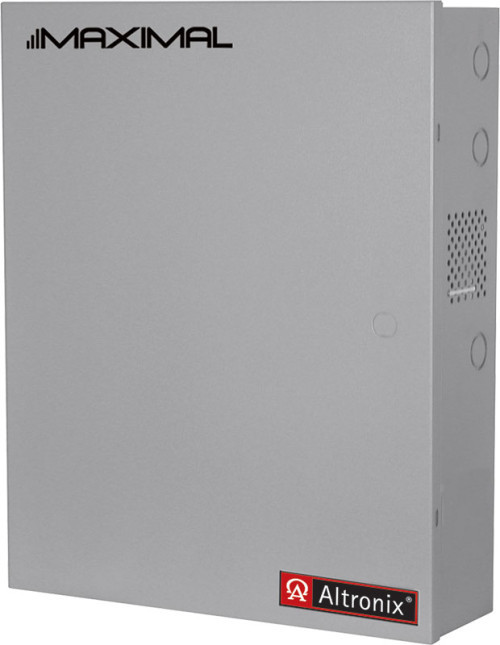

Power Supply Charger, Expandable, Dual 24VDC outputs @ 9.7A each, 115VAC, BC800 Enclosure
Maximal77E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Input
115VAC 60Hz, 8.8A input.
Output
24VDC outputs.
Maximum output current Options:
A) 24VDC @ 10A plus 24VDC @ 10A.
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.
Fuse Ratings
Power Supply input fuse rated @ 10A/250V.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when unit switches over to battery backup (AC failure condition).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF).
Storage Temperature: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 246 BTU/Hr.
System AC input VA requirement: 1012VA.
