Product Overview

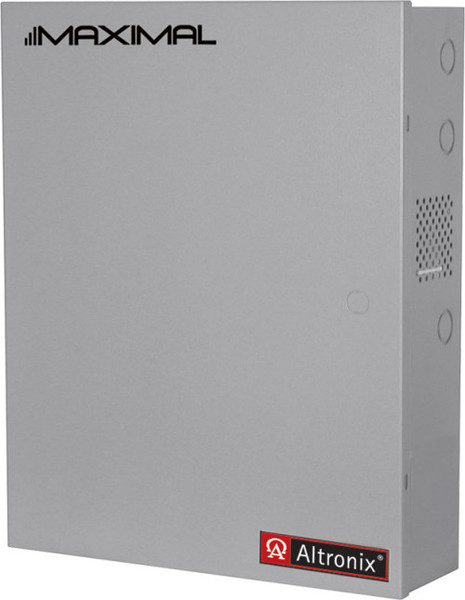

Power Supply/Charger, Expandable, 1 P/S 24VDC @ 10A & 1 P/S 12VDC @ 10A, 220VAC, BC800 Enclosure
Maximal75EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 12VDC and 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Input
220VAC (working range 198VAC - 256VAC), 50/60Hz, 5A input.
Output
12VDC and 24VDC output.
Maximum output current Options:
A) 24VDC @ 10A plus 12VDC @ 10A.
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.
Fuse Ratings
Power Supply input fuse ratings
AL1012ULXB: 3.5A/250V
AL1024ULXB: 10A/250V
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).
Battery Backup
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when unit switches over to battery backup (AC failure condition).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating Temperature: 0° C to 49° C (32° F to 120° F).
Storage Temperature: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 184 BTU/Hr.
System AC input VA requirement: 1100VA.
