Product Overview

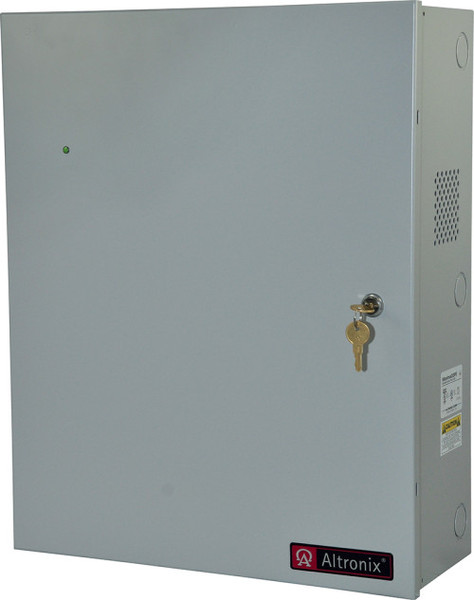

Dual Power Supply Expandable Power Systems, 12VDC @ 10A; 12VDC @ 10A, BC750 Enclosure
Altronix MaxFit55FE Dual Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 12VDC via two (2) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Input
Voltage: 120VAC 60Hz, 7A.
Output
12VDC output.
Maximum output current Options:
12VDC @ 10A plus 12VDC @ 10A.
Non power-limited outputs.
Aux. power-limited output rated @ 1A (unswitched).
Over Voltage Protection. Filtered and regulated.
Fuse Ratings
Power Supply input fuse rated: @ 5A/250V.
Back-up Battery (not included)
Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Fuse Rating: 15A/32V.
Failover: Upon AC loss, instantaneous.
Fire Alarm Disconnect
Supervised: Latching or non-latching.
EOL: 10K Resistor.
Supervision
AC Failure: Form “C” contacts.
Battery: Form “C” contacts.
Shuts down DC output terminals if battery voltage drops below 71-73% for 12V unit. Prevents deep battery discharge.
Indicators (LED)
Input: 120VAC is present.
DC Output: Powered.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 123 BTU/Hr.
